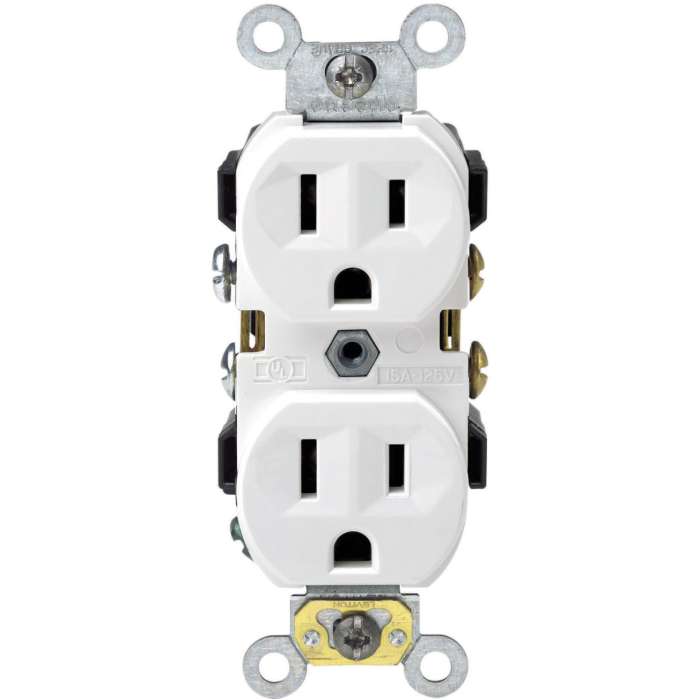

Leviton S02-0CR15-0WS Duplex Receptacle, 15 A, 2-Pole, 5-15R, White

SKU
ORG7018542
$16.98 /EACH
In stock

Body MaterialThermoplastic
Brand NameLeviton
ColorWhite
Commercial or ResidentialCommercial
Current LimitingFull Rated Current
Depth1.08
Dielectric VoltageWithstands 2000V per UL498
Face MaterialThermoplastic
Ground ClipsBrass-Plated
GroundedYes
Grounding ScrewSteel 8-32
Height4.06
Indoor or OutdoorIndoor
Line ContactsBrass Double Wipe .031 Thick
MaterialThermoplastic
Maximum Amperage15
Mounting TypeIn-Wall
Nema Type5-15R
Number in Package1
Number of Poles2
Number of Wire 3 Wire
Operating Temperature-40C to 60C
Outlet ConfigurationDuplex
Packaging TypeBoxed
Product TypeOutlet
Screw Terminal Torque14-18 in-lbs
Strap MaterialSteel
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated
Terminal Accom.14-10 AWG
Terminal IDBrass-Hot, Green-Ground, White-Neutral
Terminal ScrewsSteel 8-32
TerminationSide Wire
UL/CSA ListedBoth At Rated
Voltage1 HP
Volts125
Width1.53
Download PDF File
BrandLeviton
Weight (lbs)0.190000
UPC078477070512
MPNS02-0CR15-0WS
