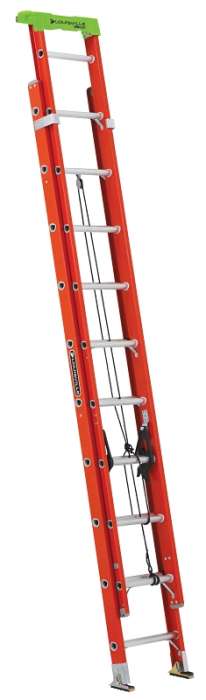

Louisville L-3022-20PT Extension Ladder, 240 in H Reach, 300 lb, 1-1/2 in D Step, Fiberglass, Orange
Delivered in 2-4 business days
- Protop with multiple tool slots and magnet
- Patented quicklatch runglock system
- Steel swivel safety shoe with metal shield
- Outside slide guides
- Direct rung-rail connection
- Includes our custom engineered maxlock that is made from a patented and advanced molecular polymer, our maxlock is the strongest toughest lightest rung lock ever made
- For building maintenance, contracting, industrial construction and roofing
This Louisville 20 ft fiberglass extension ladder has a 300 lb load capacity, rated ANSI type I. This ladder is equipped with our patented ProTop specially designed to increase productivity. this innovative ProTop features a corner grip, pole grip, integrated bumper and work tray, all compact and accessible in a spacious design. it is equipped with the maxlock rung lock, custom engineered from a patented, advanced molecular polymer, maxlock is the strongest, toughest, lightest rung lock ever made. This ladder also features outside slide guides, fully serrated D-shape rungs for a slip-resistant surface, non-marring rail end caps, quicklatch rung lock for better secure operation, rope and pulley and full heavy-duty metal boot with steel swivel safety shoes to be used with the tread down or in-spike position.
| Adjustable Increments | 12in |
|---|---|
| Base Spread Size | 6.38in |
| Base Width | 14.645 in Inside 17.045 in Outside |
| Bottom Width | 17-11/16in |
| Closed Depth | 6-3/8in |
| Closed Height | 126in |
| Closed Volume | 8.28cu-ft |
| Closed Width | 17.812in |
| Color | Orange |
| Duty Rating | Type IA |
| Extension Length | 17ft |
| Fly Width | 13-11/16 in Inside 16.0875 in Outside |
| Includes | Rail Endcaps Rope and Pulley |
| Material | Fiberglass |
| Number of Rungs | 20 |
| Opening Height | 20ft |
| Rail Depth | 3-1/4in |
| Rail Type | Non-Conductive |
| Reach Height | 240in |
| Rung Size | 10ft |
| Rung Type | D-Shaped |
| Section Length | 10ft |
| Size | 20ft |
| Stack Height | 5-7/8in |
| Standing Height | 161in |
| Step Depth | 1-1/2in |
| Weight Capacity | 300lb |
| Work Area | 17ft |
| Brand | Louisville |
|---|---|
| Weight (lbs) | 48.0000 |
| UPC | 728865104946 |
| MPN | L-3022-20PT |
