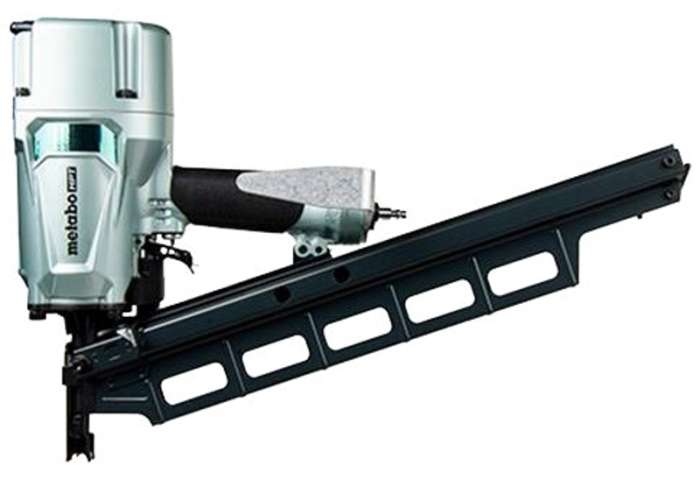

Metabo HPT NR83AA5M Pneumatic Framing Nailer, 86 to 94 Magazine, 30 deg Collation, Paper Strip Collation
SKU
ORG1881796
by METABO HPT
$289.00 /EACH
Delivered in 2-4 business days
In stock
- Cylinder valve drive system for rapid response and increased durability
- Selective actuation on trigger allows for either sequential or contact nailing
- Rafter hook is included for convenience on the jobsite
- Accepts both 30 deg paper strip collated clipped head nails and 30 deg paper strip collated offset round head nails from 2 to 3-1/4 in L and 0.113 to 0.131 in Dia nail for ultimate convenience
- Equipped with an industrial two-piece magazine that can withstand jobsite abuse
- Open nose design for easy extraction of a jammed nail
- Ergonomic non-slip rubber grip on handle helps maintain a secure hold and comfort during use
- Hardened claw tip resists wear on the nose and minimizes slippage when driving at an angle or "toe-nailing"
- 9 lb (or 9.3 lb if the rafter hook is installed) lightweight and well balanced for easy maneuverability
Category: Air Nailers
The NR83AA5 paper collated framing nailer is used for floor and wall framing, truss build-up, window build-up, construction of subflooring and roof decking, wall sheathing and mobile home and modular home construction. The NR83AA5 is like the original NR83A that you have come to trust, but now with an improved trigger design and sharing all the same internal parts as the original NR83A. The NR83AA5 relies on the same cylinder valve drive system as the NR83A, which offers both rapid response and great driving power.
| Air Consumption | 0.088 cu-ft/Cycle at 100 psi |
|---|---|
| Air Inlet Size | 3/8in |
| Air pressure | 70 to 120psi |
| Collation Angle | 30deg |
| Collation Type | Paper Strip |
| Color | Silver |
| Dimensions | 18-1/8 in L x 4-1/4 in W x 14-3/16 in H |
| Fastener Size | 0.113 to 0.131 in Dia x 2 to 3-1/4 in L |
| Handle Type | Ergonomic/Non-Slip |
| Hose Size | 1/4in |
| Housing Material | Aluminum |
| Includes | 875769 Safety Glasses |
| Magazine Capacity | 86 to 94 |
| Magazine Loading | Rear |
| Triggering Mode | Selective Actuation |
| Download PDF File |
| UPC | 717709023901 |
|---|---|
| Weight (lbs) | 11.4400 |
| MPN | NR83AA5M |
| Brand | METABO HPT |
