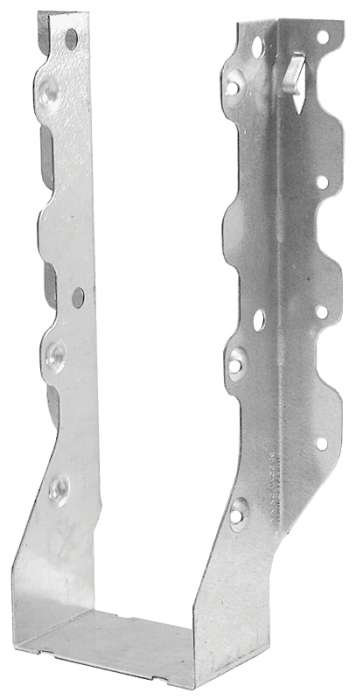

MiTek JUS210-2TZ Slant Joist Hanger, 9-1/8 in H, 2 in D, 3-1/8 in W, 2 in L x 10 to 14 in H, Steel, Zinc, Face Mounting
SKU
ORG3722360
by MiTek
$25.30 /EACH
Delivered in 2-4 business days
Out of stock
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Building Supplies
The JUS hanger Series offers double shear nailing. USP's dimple allows for 30 deg to 45 deg nailing through the joist into the header resulting in higher loads and less nailing. Slant/double shear nailing allows for higher load values, fewer nails and faster installation.
| Depth | 2in |
|---|---|
| Fastener Size | 0.162 in Dia x 3-1/2 in L |
| Fastener Type | Nail |
| Finish | Zinc |
| Height | 9.5in |
| Includes | (8) 16d Nail Headers (6) 16d Nail Joists |
| Material | Steel |
| Mounting Type | Face |
| Size | 2 in L x 10 to 14 in H |
| Skew Angle | 30 to 45deg |
| Weight Capacity | 1800lb |
| Width | 3-1/8in |
| Brand | MiTek |
|---|---|
| Weight (lbs) | 0.6000 |
| UPC | 081942100645 |
| MPN | JUS210-2TZ |
