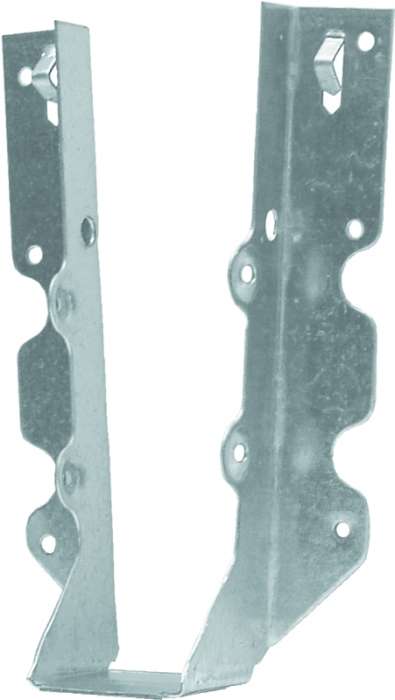

MiTek JUS28-TZ Slant Joist Hanger, 6-5/8 in H, 1-3/4 in D, 1-9/16 in W, 2 in x 8 to 10 in, Steel, Zinc, Face Mounting
SKU
ORG4630075
by MiTek
$24.18 /50EACH
Delivered in 2-4 business days
Out of stock
Category: Building Supplies
The JUS hanger Series offers double shear nailing. USP's dimple allows for 30 to 45 deg nailing through the joist into the header resulting in higher loads and less nailing. Slant/double shear nailing allows for higher load values, fewer nails and faster installation.
| Depth | 1-3/4in |
|---|---|
| Fastener Size | 0.148 in Dia x 3 in L |
| Fastener Type | Nail |
| Finish | Zinc |
| Height | 6.5in |
| Includes | (6) 10d Nails Headers (4) 10d Nails Joists |
| Material | Steel |
| Mounting Type | Face |
| Size | 2 in x 8 to 10 in |
| Skew Angle | 30 to 45deg |
| Weight Capacity | 1075lb |
| Width | 1-9/16in |
| Brand | MiTek |
|---|---|
| Weight (lbs) | 0.3800 |
| UPC | 081942099284 |
| MPN | JUS28-TZ |
