NVIDIA MCX653106A-HDAT-SP ConnectX-6 VPI Adapter Card HDR/200GbE, PCI Express 4.0 x16, 2 Port(s), Optical Fiber, QSFP56

SKU
INGM7AD901
by NVIDIA

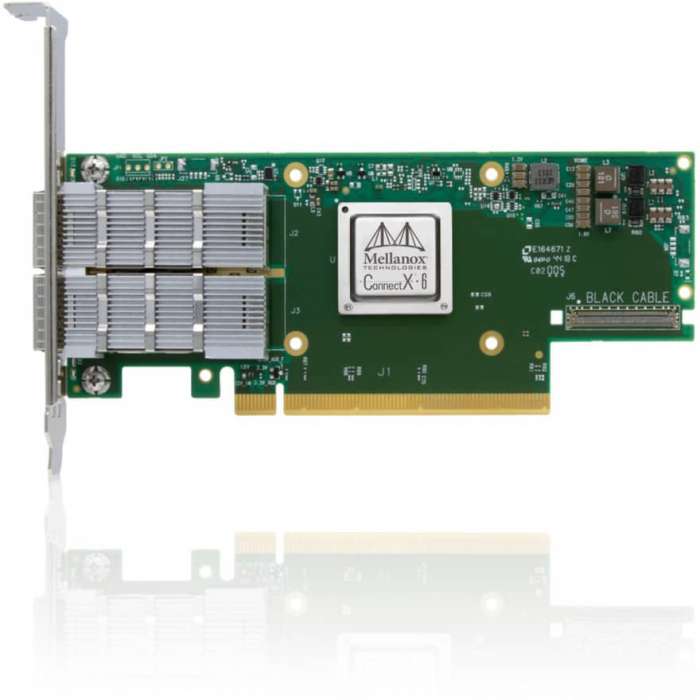

main product photo
$1,859.78 /EACH

Delivered in 2-4 business days

Out of stock
Notify me when this product is in stock
  • RoHS compliant.
  • ODCC compatible.
  • PCIe Gen 3.0 and Gen 4.0 support.
  • Best-in-class packet pacing with sub-nanosecond accuracy.
  • Supports both 50G SerDes (PAM4) and 25G SerDes (NRZ) based ports.
  • FIPS capable.
  • Advanced storage capabilities including block-level encryption and checksum offloads.
  • Sub 0.6usec latency.
  • Block-level XTS-AES mode hardware encryption.
  • Up to 215 million messages/sec.
  • Max bandwidth of 200Gb/s.
  • Up to 200Gb/s connectivity per port .
About Us:
Amazon_Reviews
150,000+
Reviews
Rated 4.7 on Amazon
★★★★★ 4.7
7 Private Brands
7 Private
Brands
Developed in-house
Fast Shipping
Fast Shipping
62 warehouses nationwide
20 Years Experience
20 Years
Experience
Trusted since 2005
Wholesale Discounts
Wholesale
Discounts
Special pricing
for bulk orders
Call 800-995-7539
Category: Add-On Cards

NVIDIA MCX653106A-HDAT-SP ConnectX-6 VPI Adapter Card HDR InfiniBand and 200GbE Dual-Port QSFP56 PCIe 4.0 x16 Tall Bracket (-SP indicates Single Pack)ConnectX-6 VPI Card 200Gb/s InfiniBand & Ethernet Adapter Card. ConnectX-6 Virtual Protocol Interconnect (VPI) cards are a groundbreaking addition to the ConnectX series of industry-leading network adapter cards. Providing two ports of 200Gb/s for InfiniBand and Ethernet connectivity, sub-600ns latency and 215 million messages per second, ConnectX-6 VPI cards enable the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications. In addition to all the existing innovative features of past versions, ConnectX-6 cards offer a number of enhancements to further improve performance and scalability. ConnectX-6 VPI supports HDR, HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as 200, 100, 50, 40, 25, and 10Gb/s Ethernet speeds.


Brand NameNVIDIA
Environmental CertificationRoHS
Environmentally FriendlyYes
Expansion Slot Type (I/O Expansions)QSFP56
Expansion Slot TypeQSFP56
Host Interface (Interfaces/Ports)PCI Express 4.0 x16
Host InterfacePCI Express 4.0 x16
Manufacturer Part NumberMCX653106A-HDAT-SP
ManufacturerNVIDIA Corporation
Media Type SupportedOptical Fiber
Packaged Quantity1
Product FamilyConnectX-6 VPI
Product LineConnectX-6 VPI
Product ModelMCX653106A-HDAT-SP
Product NameMCX653106A-HDAT-SP ConnectX-6 VPI Adapter Card HDR/200GbE
Product Type200Gigabit Ethernet Card
Total Number of Ports (Interfaces/Ports)2
Total Number of Ports2
BrandNVIDIA
Weight (lbs)0.6000
UPC7290108488494
MPNMCX653106A-HDAT-SP
Prop65 WarningCalifornia Prop 65 WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
