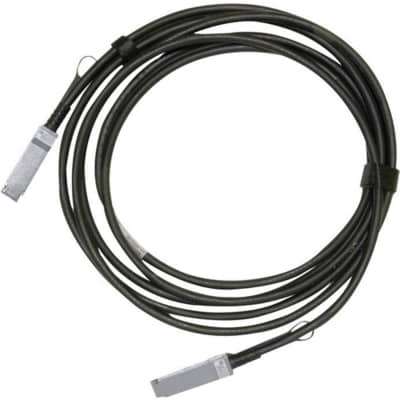

Nvidia Mellanox 100GbE QSFP28 Direct Attach Copper Cable, 8.20 ft Twinaxial Network Cable for Network Device, First End: 1 x SFF-8665 QSFP28 Network, Second End: 1 x SFF-8665 QSFP28 Network, 100 Gbit/s
Delivered in 2-4 business days
- Up to 100GbE data rate.
- SFF-8665 compliant QSFP28.
- Operating case temperature 0-70C.
- Single 3.3V supply voltage.
- Bit Error Rate (BER) better than 1E-15 with Mellanox systems.
- Hot pluggable.
- RoHS compliant.
- LSZH (Low Smoke Zero Halogen) jacket.
- LF (Lead Free) HF (Halogen Free) PCB.
- SFF-8636 compliant I2 C management interface .
MellanoxMCP1600-C0xxEyyz direct attach copper (DAC) cables are high speed, cost-effectivealternatives to fiber optics in 100Gb/s Ethernet applications.Mellanox QSFP28 passive copper cable contains four high-speed copper pairs, each operating at data ratesof up to 25GbE. Each QSFP28 connector includes an EEPROM providing product information which can beread by the host system.Mellanox's unique quality, passive, copper cable solutions provide power-efficient connectivity for shortdistance interconnects. They enable higher port bandwidth, density and configurability at a low cost andreduced power requirement in the data centers.MCP1600-C0xxEyyz cables up to 2m support IEEE 802.3bj CA-25G-N (Cable Assembly No-FEC) with lowlatency. Cables from 3m to 5m support IEEE 802.3bj CA-25G-L (Cable Assembly Long) with RS-FEC (ReedSolomon Forward Error Correction) enabled(1). For 2.5m and 3m cables there are two versions supportingeither CA-25G-N or CA-25G-L.Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for shortdistance interconnects. They enable higher port bandwidth, density and configurability at a low cost andreduced power requirement in the data centers.Rigorous cable production testing ensures best out-of-the-box installation experience, performance anddurability.
American Wire Gauge | 30 AWG |
---|---|
Brand Name | Mellanox |
Cable Length | 8.20 ft |
Cable Type | Twinaxial |
Connector on First End Details | 1 x SFF-8665 QSFP28 Network |
Connector on Second End Details | 1 x SFF-8665 QSFP28 Network |
Connector Type on First End | SFF-8665 QSFP28 Network |
Connector Type on Second End | SFF-8665 QSFP28 Network |
Data Transfer Rate | 100 Gbit/s |
Device Supported | Network Device |
Environmental Certification | RoHS |
Environmentally Friendly | Yes |
Features | Bendable |
Features | Halogen Free |
Features | Lead-free |
Features | Passive |
Jacket Type | LSZH |
Manufacturer Part Number | MCP1600-C02AE30L |
Manufacturer | NVIDIA Corporation |
Number of Pairs | 4 |
Product Color | Black |
Product Line | LinkX |
Product Material | Copper |
Product Name | 100GbE QSFP28 Direct Attach Copper Cable |
Product Type | Network Cable |
Download PDF File |
UPC | 7290108482478 |
---|---|
Weight (lbs) | 0.5500 |
MPN | MCP1600-C02AE30L |
Brand | NVIDIA |
