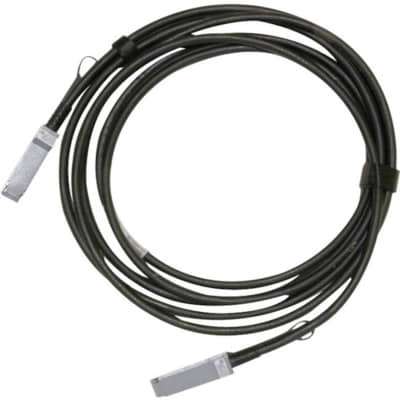

Nvidia Mellanox DAC Cable Ethernet 100GbE QSFP28 1.5m - 4.92 ft Twinaxial Network Cable for Network Device - First End: 1 x SFF-8665 QSFP28 Network - Second End: 1 x SFF-8665 QSFP28 Network - 100 Gbit/s - LSZH - 30 AWG - Black
Delivered in 2-4 business days
- Allows you to access all of the networked data, swiftly and securely
- Experience a simpler way to connect devices with the entire business network
- Fully compatible with network devices
- Passive feature for better reliability and ensure maximum productivity
- Passive feature for better usability and increased efficiency
- Twinaxial cable type - for places where up to 10 meters coverage with high-speed data transfer is required
NVIDIA MCP1600-C01AE30N Direct Attach Copper Cable Ethernet 100GbE QSFP28 1.5m Black 30AWG CA-N100GbE QSFP28 Direct Attach Copper Cable . NVIDIA's direct attach copper (DAC) cables are high speed, cost-effective alternatives to fiber optics in 100Gb/s Ethernet applications. . NVIDIA QSFP28 passive copper cable contains four high-speed copper pairs, each operating at data rates of up to 25GbE. Each QSFP28 connector includes an EEPROM providing product information which can be read by the host system. . NVIDIA's unique quality, passive, copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. . MCP1600-C0xxEyyz cables up to 2m support IEEE 802.3bj CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.3bj CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled(1). For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L. . NVIDIA's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. . Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability. . Highlights ; Up to 100GbE data rate ; SFF-8665 compliant QSFP28 ; Operating case temperature 0-70C ; Single 3.3V supply voltage ; Bit Error Rate (BER) better than 1E-15 ; Hot pluggable ; RoHS compliant ; LSZH (Low Smoke Zero Halogen) jacket ; LF (Lead Free) HF (Halogen Free) PCB ; SFF-8636 compliant I2C management interface
Cable Length | 4.92 ft |
---|---|
Product Type | Network Cable |
Brand Name | Mellanox |
Cable Type | Twinaxial |
Connector Type on First End | SFF-8665 QSFP28 Network |
Connector Type on Second End | SFF-8665 QSFP28 Network |
Product Color | Black |
Download PDF File |
UPC | 7290108482584 |
---|---|
Weight (lbs) | 0.4000 |
MPN | MCP1600-C01AE30N |
Brand | Nvidia |
