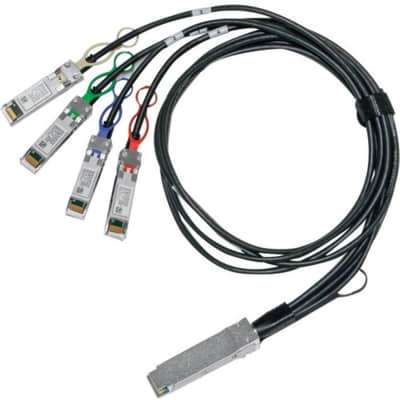

Nvidia Mellanox MCP7F00-A01AR30N DAC Splitter Cable Ethernet 100GbE to 4x25GbE 1.5m - 4.92 ft QSFP28/SFP28 Network Cable for Network Device - First End: 1 x SFF-8665 QSFP28 Network - Second End: 4 x SFF-8402 SFP28 Network - 100 Gbit/s - Splitter Cab

Nvidia Mellanox MCP7F00-A01AR30N DAC Splitter Cable Ethernet 100GbE to 4x25GbE 1.5m - 4.92 ft QSFP28/SFP28 Network Cable for Network Device - First End: 1 x SFF-8665 QSFP28 Network - Second End: 4 x SFF-8402 SFP28 Network - 100 Gbit/s - Splitter Cable - LSZH - 30 AWG - Black. NVIDIA MCP7F00-A01AR30N Direct Attach Copper Splitter Cable Ethernet 100GbE to 4x25GbE QSFP28 to 4xSFP28 1.5m Colored 30AWG CA-N | 100GbE to 4x25GbE QSFP28 to 4xSFP28 Direct Attach Copper Splitter Cable . NVIDIA Networking DAC splitter breakout cables are a high speed, cost-effective 100GbE to 4x25GbE Ethernet connectivity solution, designed to meet the growing needs for higher bandwidth in data centers. . MCP7F00-A0xxRyyz cables are compliant with SFF-8402 SFP28 and SFF-8665 QSFP28 standard specifications and provide connectivity between system units with a QSFP28 port on one side and up to four different SFP28 ports on the other. The cable connects data signals from each of the 4 copper pairs on the QSFP28 end to the single pair of each of the SFP28 ends. Each QSFP28/SFP28 port comprises an EEPROM providing product information, which can be read by the host system. . MCP7F00-A0xxRyyz cables up to 2m support IEEE 802.3by CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.by CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L. . NVIDIA's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. . Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability. . Highlights ; 100GbE to 4x25GbE data rate ; 40GbE to 4x10GbE data rate ; SFF-8402 SFP28 compliant ; SFF-8665 QSFP28 compliant ; Operating case temperature 0-70C ; Single 3.3V supply voltage ; Bit Error Rate (BER) better than 1E-15 ; Hot pluggable ; RoHS compliant ; LSZH (Low Smoke Zero Halogen) jacket ; LF (Lead Free) HF (Halogen Free) PCB ; SFF-8636 compliant I2C management interface
