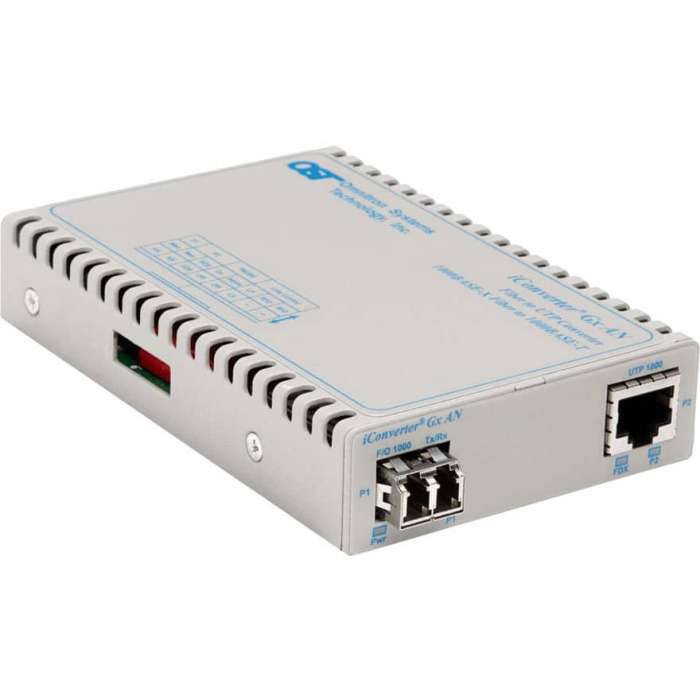

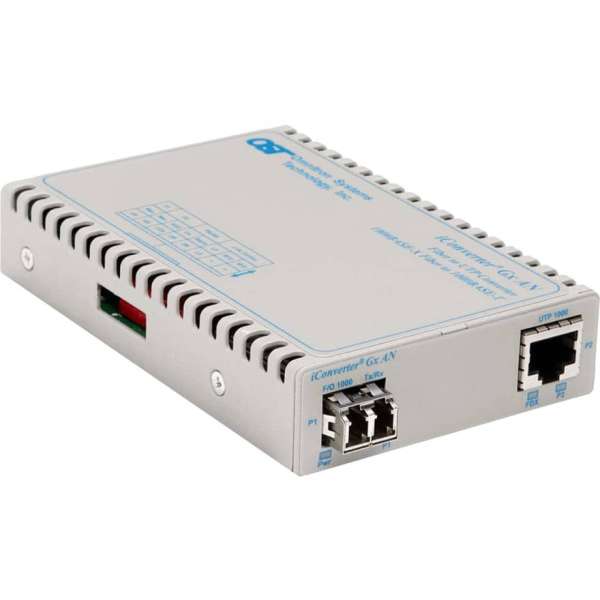

Omnitron Systems iConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 LC Multimode 550m, 1 x 1000BASE-T; 1 x 1000BASE-SX; Standalone; US AC Powered; Lifetime Warranty
Delivered in 2-4 business days
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With 1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
- Rackmountable feature for convenient and safe installation of device
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
The iConverter Gx AN Media Converter is a manageable media converter that provides 1000BASE-T UTP to 1000BASE-X fiber conversion between Gigabit networking devices. The UTP port supports auto-negotiation or forced negotiation of duplex modes and pause capability while the fiber port supports both manual or auto-negotiation.; SFP models support Small Form Pluggable (SFP) transceivers with Optical Statistics for standard or CWDM applications; Fixed-fiber connectors available for multimode and single-mode dual fiber and single-mode single-fiber; UTP auto or forced negotitaion of duplex modes and pause capabilities; Fiber port supports auto or manual negotiation; User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting; Management of the plug-in module is available with the addition of a management module to the chassis; SNMP management via NetOutlook" provides module information, remote parameter configuration and trap notification; Plug-in modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis; LED displays for immediate visual status of each port; Lifetime Warranty and free 24/7 Technical Support
| Additional Information | Input Voltage:; 8-15VDC via 2.5mm barrel (0.3A @ 9VDC); 100-120VAC/60Hz (0.04A @ 120VAC) |
|---|---|
| Brand Name | Omnitron Systems |
| Certifications & Standards | EIA/TIA 568A/BCompliance:; UL; CE; FCC Class A; IEEE 802.3ab 1000BASE-T; IEEE 802.3z 1000BASE-X |
| Country of Origin | United States |
| Depth | 4.8" |
| Digital Audio (Interfaces/Ports) | No |
| Digital Audio/Video (Interfaces/Ports) | No |
| DVI (Interfaces/Ports) | No |
| DVI | No |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Standard | 50/125 µm |
| Fiber Optic Wavelength | 850 nm |
| Form Factor | Desktop |
| Form Factor | External |
| Form Factor | Rack-mountable |
| Height | 1" |
| Input Voltage | |
| LC Port Type (Interfaces/Ports) | Duplex |
| LC Port Type | Duplex |
| Management Port (Interfaces/Ports) | No |
| Manufacturer Part Number | 8506N-0-A |
| Manufacturer | Omnitron Systems |
| Maximum Distance Supported | 1804.46 ft |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) (Interfaces/Ports) | Yes |
| Network (RJ-45) | Yes |
| Network Technology | 1000Base-SX |
| Network Technology | 1000Base-T |
| Number of LC Ports (Interfaces/Ports) | 1 |
| Number of LC Ports | 1 |
| Number of Network (RJ-45) Ports (Interfaces/Ports) | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents | iConverter Gx AN LC Multimode 550m Standalone US AC Powered; US Power Supply - 120Volt / 60Hz; User Manual |
| Package Type | Retail |
| Parallel Port (Interfaces/Ports) | No |
| Product Family | iConverter Gx AN |
| Product Line | iConverter |
| Product Model | 8506N-0-x |
| Product Name | iConverter Gx AN LC Multimode 550m Standalone US AC Powered |
| Product Series | Gx AN |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports (Interfaces/Ports) | 2 |
| Total Number of Ports | 2 |
| USB (Interfaces/Ports) | No |
| USB | No |
| Weight (Approximate) | 1 lb |
| Width | 3.1" |
| Download PDF File |
| Brand | Omnitron Systems |
|---|---|
| Weight (lbs) | 1.5200 |
| UPC | 0800975025820 |
| MPN | 8506N-0-A |
