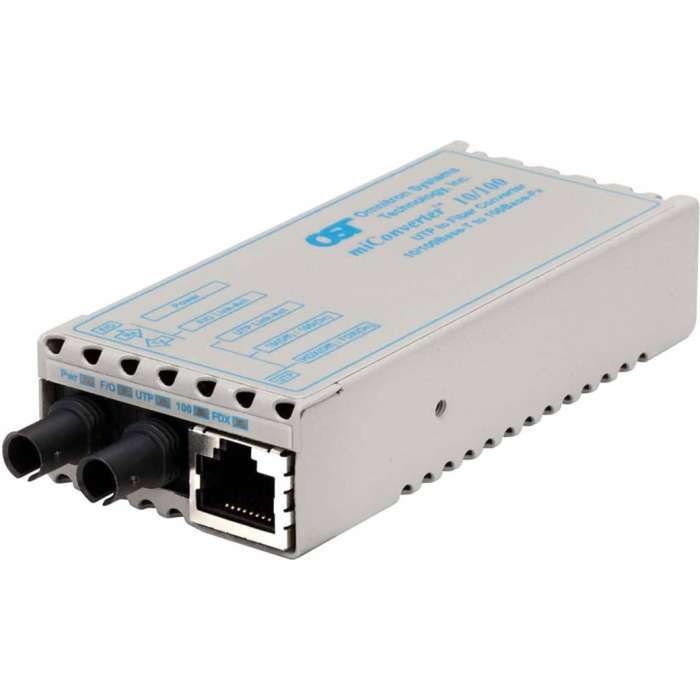

Omnitron Systems miConverter 10/100 Ethernet Fiber Media Converter RJ45 ST Multimode 5km, 1 x 10/100BASE-TX, 1 x 100BASE-FX, US AC Powered, Lifetime Warranty
Delivered in 2-4 business days
The miniature miConverter 10/100 and miConverter 10/100 Plus are rate-switching 10/100 UTP copper to 100BASE-FX fiber media converters. The miConverter provides cost-effective fiber connectivity from Ethernet switches to diagnostic equipment, desktop and laptop computers.. They can be powered by a computer's USB port using the optional USB Power Adaptor Cable, which reduces the module's weight and eliminates the need to tether the miConverter to an electrical outlet that provide cost-effective fiber network extension and connectivity.; Miniature 10/100BASE-TX to 100BASE-FX Ethernet media converter; Supports 10BASE-T, 100BASE-TX, 100BASE-FX and the IEEE 802.3 specification; Supports Full/Half-Duplex UTP auto-negotiation; Automatically detects and adjusts crossover function; Multimode, single-mode and single-fiber options; ST or SC fiber connector options; Domestic, Universal and Country/Region specific AC power supply options available; Optional USB power adapter cable available for operation without AC power adapter; The miConverter 10/100 Plus features DIP-switches for UTP and Link Mode configurations; LED indicators for UTP and fiber status; Wall-mount with optional mounting brackets; Cost-effective; Small and light, weighs only 5 ounces (without power supply); Lifetime Warranty and free 24/7 Technical Support
| Additional Information | Input Voltage:; 5-15VDC via 2.5mm barrel (0.5A @ 5VDC); 100-120VAC/60Hz (0.03A @ 120VAC) |
|---|---|
| Brand Name | Omnitron Systems |
| Certifications & Standards | EIA/TIA 568A/BCompliance:; UL; CE; FCC Class A; IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX and 100BASE-FX |
| Country of Origin | United States |
| Depth | 4.1" |
| Digital Audio (Interfaces/Ports) | No |
| Digital Audio/Video (Interfaces/Ports) | No |
| DVI (Interfaces/Ports) | No |
| DVI | No |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Ethernet |
| Ethernet Technology | Fast Ethernet |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Wavelength | 1310 nm |
| Form Factor | Desktop |
| Form Factor | External |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Height | 0.8" |
| Input Voltage | |
| Input Voltage | 120 V AC |
| Input Voltage | 5 V DC |
| Management Port (Interfaces/Ports) | No |
| Manufacturer Part Number | 1100-0-1 |
| Manufacturer | Omnitron Systems |
| Maximum Distance Supported | 3.11 Mile |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) (Interfaces/Ports) | Yes |
| Network (RJ-45) | Yes |
| Network Technology | 10/100Base-TX |
| Network Technology | 100Base-FX |
| Number of Network (RJ-45) Ports (Interfaces/Ports) | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports (Interfaces/Ports) | 1 |
| Number of ST Ports | 1 |
| Package Contents | miConverter 10/100 ST Multimode 5km US AC Powered; US Power Supply - 120Volt / 60Hz; Velcro Strip; User Manual |
| Package Type | Retail |
| Parallel Port (Interfaces/Ports) | No |
| Product Family | miConverter 10/100 |
| Product Line | miConverter |
| Product Model | 1100-0-x |
| Product Name | miConverter 10/100 ST Multimode 5km US AC Powered |
| Product Series | 10/100 |
| Product Type | Transceiver/Media Converter |
| ST Port Type (Interfaces/Ports) | Duplex |
| ST Port Type | Duplex |
| Total Number of Ports (Interfaces/Ports) | 2 |
| Total Number of Ports | 2 |
| USB (Interfaces/Ports) | No |
| USB | No |
| Weight (Approximate) | 5 oz |
| Width | 1.7" |
| Download PDF File |
| Brand | Omnitron Systems |
|---|---|
| Weight (lbs) | 0.9500 |
| UPC | 800975019003 |
| MPN | 1100-0-1 |
