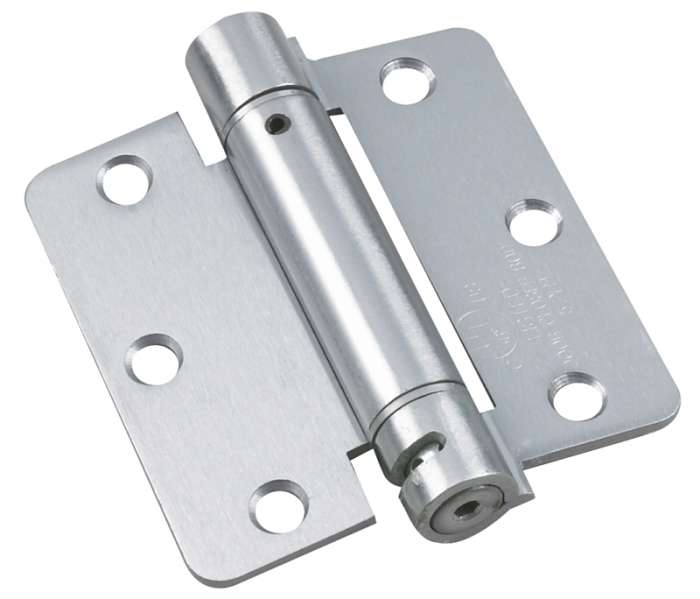

Onward 52821BCR Spring Hinge, 44.5 mm W Frame Leaf, 88.8 mm H Frame Leaf, 2.7 mm Thick Frame Leaf, Steel, Chrome, 30 lb
SKU
ORG4436135
by Onward
$29.44 /CARD
Delivered in 2-4 business days
Out of stock
Category: Building Supplies
Onward Spring Hinge, 30 lb Weight, Door Leaf Height: 88.8 mm, Door Leaf Width: 44.5 mm, Door Leaf Thickness: 2.7 mm, Frame Leaf Height: 88.8 mm, Frame Leaf Width: 44.5 mm, Frame Leaf Thickness: 2.7 mm, Number of Knuckles: 3, Pin Diameter: 18 mm, Number of Mounting Holes: 6, Mounting Hole Diameter: 7.2 mm Inside, 10.2 mm Outside, Hole Spacing: 35.4 mm, Steel, Chrome, Dimensions: 3.5 in L x 1.75 in W, Includes: (6) #10 x 1 in Wood Screws, (6) #10-24 x 1/2 in Machine Screws
| Dimensions | 3.5 in L x 1.75 in W |
|---|---|
| Door Leaf Height | 88.8mm |
| Door Leaf Thickness | 2.7mm |
| Door Leaf Width | 44.5mm |
| Finish | Chrome |
| Frame Leaf Height | 88.8mm |
| Frame Leaf Thickness | 2.7mm |
| Frame Leaf Width | 44.5mm |
| Hole Spacing | 35.4mm |
| Includes | (6) 10 x 1 in Wood Screws (6) 10-24 x 1/2 in Machine Screws |
| Material | Steel |
| Mounting Hole Diameter | 7.2 mm Inside 10.2 mm Outside |
| Number of Knuckles | 3 |
| Number of Mounting Holes | 6 |
| Pin Diameter | 18mm |
| Weight Capacity | 30lb |
| Brand | Onward |
|---|---|
| Weight (lbs) | 0.7300 |
| UPC | 062703528212 |
| MPN | 52821BCR |
