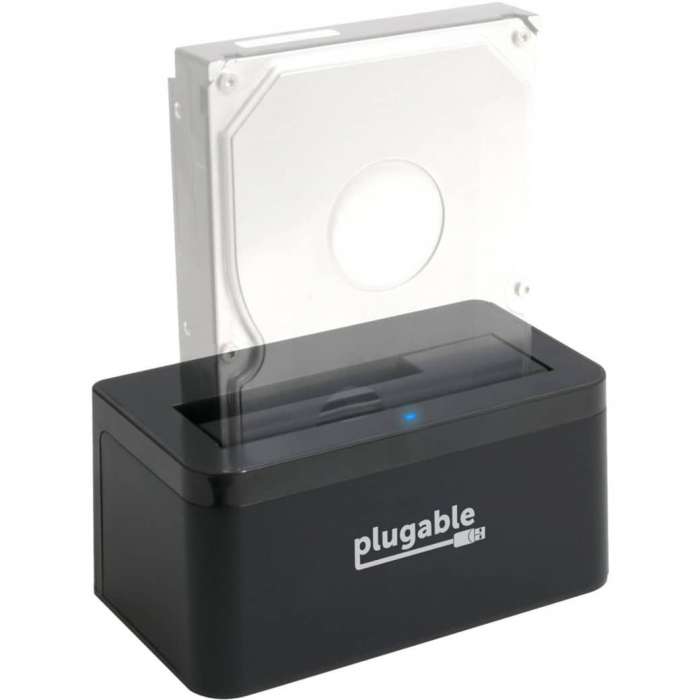

Plugable USB 3.1 Gen 2 10Gbps SATA Upright Hard Drive Dock and SSD Dock, (Includes Both USB-C and USB 3.0 Cables, Supports 10TB+ Drives)
Delivered in 2-4 business days
- Hot-Swappable.
- Universal USB compatibility.
- Plug and play.
- USB-C 3.1 Gen 2 performance.
- Upright orientation for max cooling and compact footprint.
- Supports 2.5""/3.5"" SATA drives .
PerformanceFeatures future-proof USB 3.1 Gen 2, USB 3.0 and USB 2.0 connectivity with support for USB Type A and Type C host systems. Uses the ASMedia 1351E chipset and firmware with UASP and BOT support for maximum performance and features. Drive sleeps automatically on OS power events or 10 minutes of idle to conserve power and reduce heat. Form FactorVertical design provides maximum cooling while taking up minimal space. Robust on/off toggle switch powers off dock when not in use. Blue LED reports drive activity. 12V3A power adapter provides power for even the largest enterprise SATA drives so you can attain top performance speeds during the entire file transfer. CompatibilityUses standard drivers in modern operating systems, so no additional drivers required. Compatible with Windows XP through 10, macOS, and Linux / Unix. Supports 12TB+ drives on 64-bit operating systems (32-bit Windows supports drives up to 2TB max). Connects to USB-C and Thunderbolt 3 ports with the provided USB-C cable, as well as legacy USB 2.0 and USB 3.0 hosts with the provided USB 3.0 cable. Supports all 2.5" and 3.5" SATA hard drives, solid state drives, and hybrid drives up to any volume size available on the market today (currently 12TB+). IDE/EIDE/PATA, SCSI, SAS, mSATA, and M.2 drives are not compatible. In the boxUSB-C to SATA Dock, 1m/3ft USB-C to USB-C Cable, 1m/3ft USB-A to USB-C Cable, AC 12V3A Power Adapter 100-240V 50/60Hz, Quick Start Guide.
| Brand Name | Plugable |
|---|---|
| Country of Origin | China |
| Drive Interface (Interfaces/Ports) | SATA |
| Drive Interface | SATA |
| Form Factor | External |
| Host Interface (Interfaces/Ports) | USB 3.1 (Gen 2) Type C |
| Host Interface | USB 3.1 (Gen 2) Type C |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | USBC-SATA-V |
| Manufacturer | Plugable Technologies |
| Maximum Power Supply Wattage | 36 W |
| Number of 2.5"/3.5" Bays (I/O Expansions) | 1 |
| Number of 2.5"/3.5" Bays | 1 |
| Number of Hard Drives Installed | 0 |
| Number of Hard Drives Supported | 1 |
| Number of Solid State Drive Installed | 0 |
| Number of Solid State Drive Supported | 1 |
| Number of Total Expansion Bays (I/O Expansions) | 1 |
| Number of Total Expansion Bays | 1 |
| Package Contents | USB 3.1 Gen 2 10Gbps SATA Upright Hard Drive Dock and SSD Dock; 1 x 3ft USB-C male to USB-C Male USB Cable; 1 x 3ft USB-C male to USB-A Male USB Cable; 1 x 36W 12V/3A AC Power Adapter; 1 x Quick Start Guide |
| Packaged Quantity | 1 |
| Platform Supported | Linux |
| Platform Supported | Mac |
| Platform Supported | PC |
| Power Source | AC Adapter |
| Product Model | USBC-SATA-V |
| Product Name | USB 3.1 Gen 2 10Gbps SATA Upright Hard Drive Dock and SSD Dock |
| Product Type | Drive Dock |
| Total Hard Drive Capacity Supported | 8 TB |
| Total Solid State Drive Capacity Supported | 8 TB |
| Brand | Plugable |
|---|---|
| Weight (lbs) | 1.3000 |
| UPC | 819927010975 |
| MPN | USBC-SATA-V |
