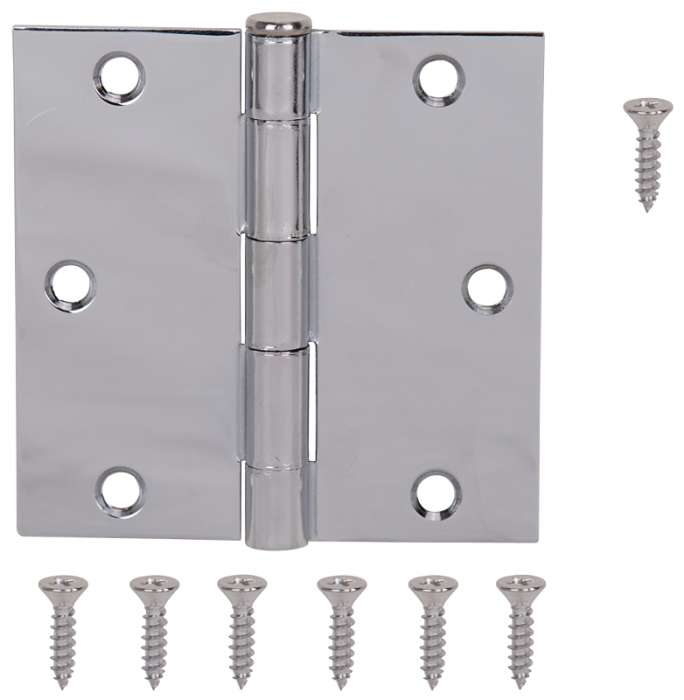

ProSource 20338BCX Square Corner Door Hinge, Steel, Chrome, Loose Pin, 180 deg Range of Motion, Screw Mount Mounting
SKU
ORG3525698
by ProSource
$15.70 /BAG
Delivered in 2-4 business days
In stock
- Bight chrome finish
- Dimensions: 3-1/2 x 3-1/2 in
- Five knuckles, loose pin
- For residential applications
Category: Building Supplies
A creaking door at your place, don't get too worked up about it since there is a remedy to that. Those days of creaking or breaking hinges are over with this hinge - the door control hinge you need. It's great for interior and exterior applications. Suitable to use on all non-commercial interior, exterior doors or wood furniture, this corner hinge is the best. With this hinge, you are getting a high-quality fitting. This hinge can hold a light to medium weighted doors. You have to do very little maintenance. Overall, it s well with most types of doors and better with aluminum ones. Once installed, this hinge makes the opening of doors very easy.
| Color | Bight Chrome |
|---|---|
| Dimensions | 3-1/2 x 3-1/2in |
| Door Leaf Height | 3-5/8in |
| Door Leaf Thickness | 2.2mm |
| Door Leaf Width | 1-1/2in |
| Door Thickness | 1-3/4in |
| Finish | Chrome |
| Hole Spacing | 1-1/2in |
| Includes | Screws |
| Knuckle Diameter | 6.3mm |
| Knuckle Length | 24mm |
| Material | Steel |
| Mounting Hole Diameter | 6mm |
| Mounting Type | Screw Mount |
| Number of Knuckles | 5 |
| Number of Mounting Holes | 6 |
| Pin Diameter | 5.5mm |
| Pin Type | Loose |
| Range of Motion | 180deg |
| Download PDF File |
| Brand | ProSource |
|---|---|
| Weight (lbs) | 0.4100 |
| UPC | 045734927117 |
| MPN | 20338BCX |
