ProSource 20347ST4C Door Hinge, Steel, Yellow Zinc Dichromate, Loose Pin, 180 deg Range of Motion, Screw Mounting

Name: ProSource 20347ST4C Door Hinge, Steel, Yellow Zinc Dichromate, Loose Pin, 180 deg Range of Motion, Screw Mounting
Price: 16.49 USD
Availability: InStock

SKU

ORG2973287

by ProSource

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$16.49 /BAG

In stock

Category: Building Supplies

Details

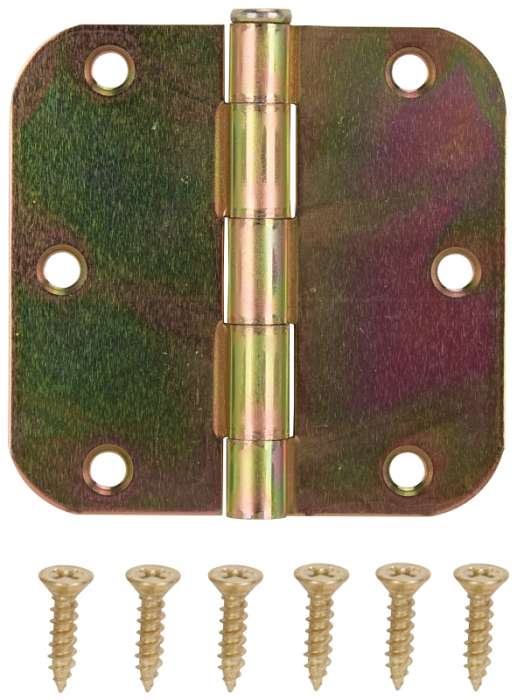

The ProSource door hinge offers a unique and creative hardware solution for your home. It is made of steel and measures 2.2 mm thick with 5-knuckles and a loose pin.

Color	Yellow Zinc Dichromate
Corner Radius	5/8in
Dimensions	3-1/2 x 3-1/2in
Door Leaf Height	3-1/2in
Door Leaf Thickness	2.2mm
Door Leaf Width	3-1/2in
Door Thickness	1-3/4in
Finish	Yellow Zinc Dichromate
Includes	Screws
Material	Steel
Mounting Hole Diameter	7mm
Mounting Type	Screw
Number of Knuckles	5
Number of Mounting Holes	6
Pin Diameter	6mm
Pin Type	Loose
Range of Motion	180deg
Download PDF File	Specification Sheet

More Information

Brand_OLD	ProSource
Brand	ProSource
Weight (lbs)	0.410000
UPC	045734926998
MPN	20347ST4C
