ProSource LR-703-PS Door Hinge, Steel, Satin Bronze, Loose Pin, 180 deg Range of Motion, Screw Mounting

Name: ProSource LR-703-PS Door Hinge, Steel, Satin Bronze, Loose Pin, 180 deg Range of Motion, Screw Mounting
Price: 16.02 USD
Availability: InStock

SKU

ORG2963833

by ProSource

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$16.02 /BAG

In stock

Category: Building Supplies

Details

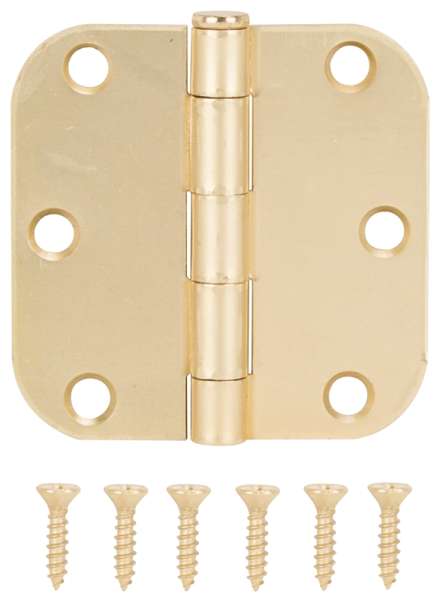

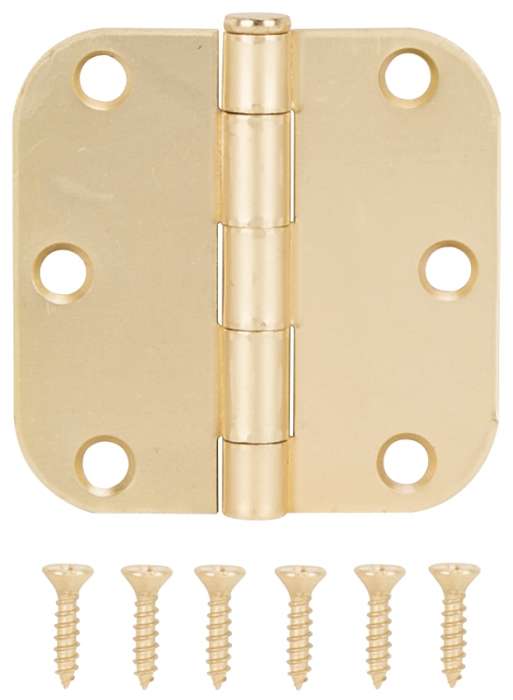

The ProSource door hinge is made of steel. The hinge offers a unique and creative hardware solutions for your home. It's 2.2 mm thick with 5-knuckles and a loose pin.

Color	Satin Brass
Corner Radius	5/8in
Dimensions	3 x 3in
Door Leaf Height	3in
Door Leaf Thickness	2mm
Door Leaf Width	3in
Door Thickness	1-1/2in
Finish	Satin Bronze
Includes	Screws
Material	Steel
Mounting Hole Diameter	7mm
Mounting Type	Screw
Number of Knuckles	5
Number of Mounting Holes	6
Pin Diameter	6mm
Pin Type	Loose
Range of Motion	180deg
Download PDF File	Specification Sheet

More Information

Brand_OLD	ProSource
Brand	ProSource
Weight (lbs)	0.420000
UPC	045734647480
MPN	LR-703-PS
