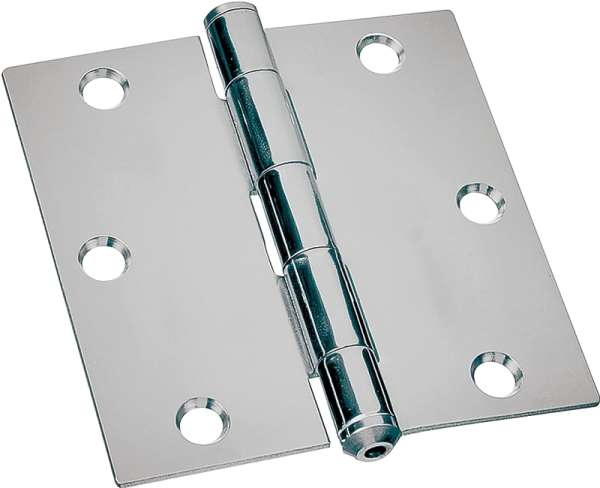

ProSource LR-039-PS Utility Hinge, Steel, Zinc, Removable Pin, 180 deg Range of Motion, Full Mortise Mounting

SKU

ORG2903078

by ProSource

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$15.84 /CARD

In stock

Category: Building Supplies

Details

The ProSource utility hinges are constructed of high quality stainless steel ensuring durability and dependability. It has a five knuckle full mortise design and allows for easy installation or removal of lightweight doors. The screws are included.

Color	Silver
Dimensions	2-1/2 in L x 2-1/2 in W
Door Leaf Height	2-1/2in
Door Leaf Thickness	2.3mm
Door Leaf Width	1in
Finish	Zinc
Hole Spacing	1in
Includes	Mounting Hardware
Knuckle Diameter	6mm
Knuckle Length	7mm
Material	Steel
Mounting Hole Diameter	6mm
Mounting Type	Full Mortise
Number of Knuckles	5
Number of Mounting Holes	6
Pin Diameter	5.2mm
Pin Type	Removable
Range of Motion	180deg
Suitable for	Lightweight Doors
Weight Capacity	48 (Pair)lb
Download PDF File	Instructions

More Information

Brand_OLD	ProSource
Brand	ProSource
Weight (lbs)	0.390000
UPC	045734647268
MPN	LR-039-PS
