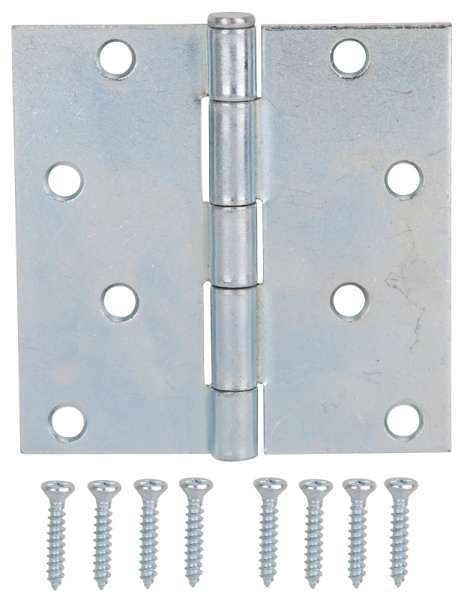

ProSource LR-042-PS Utility Hinge, Steel, Zinc, Removable Pin, 180 deg Range of Motion, Full Mortise Mounting

SKU

ORG2907178

by ProSource

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$17.05 /CARD

In stock

Category: Building Supplies

Details

The ProSource utility hinges are constructed of high quality stainless steel ensuring durability and dependability. It has a five knuckle full mortise design and allows for easy installation or removal of lightweight doors. The screws are included.

Color	Silver
Dimensions	4 in L x 4 in W
Door Leaf Height	4in
Door Leaf Thickness	2.3mm
Door Leaf Width	1-3/4in
Finish	Zinc
Hole Spacing	1-1/4in
Includes	Mounting Hardware
Knuckle Diameter	6.5mm
Knuckle Length	24mm
Material	Steel
Mounting Hole Diameter	7mm
Mounting Type	Full Mortise
Number of Knuckles	5
Number of Mounting Holes	8
Pin Diameter	7mm
Pin Type	Removable
Range of Motion	180deg
Suitable for	Lightweight Doors
Weight Capacity	70 (Pair)lb
Download PDF File	Instructions

More Information

Brand_OLD	ProSource
Brand	ProSource
Weight (lbs)	0.100000
UPC	045734647299
MPN	LR-042-PS
