(149118 ratings)

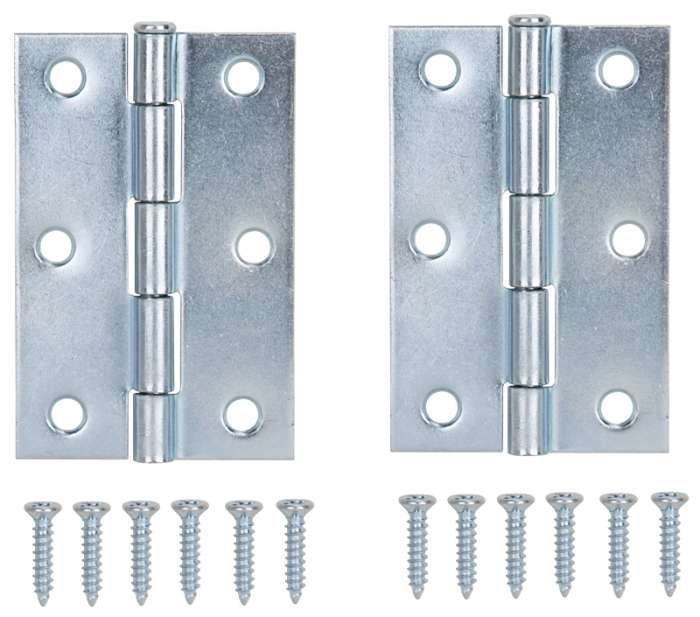

ProSource LR-056-PS Utility Hinge, Steel, Zinc, Loose Pin, 180 deg Range of Motion, Full Mortise Mounting, 28 (Pair) lb
SKU
ORG2938322
by ProSource
$18.72 /CARD
Delivered in 2-4 business days
In stock
- Steel with zinc plated finish
- Square corner
- Five knuckles, removable pin
- For general utility use on lightweight doors
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Building Supplies
The ProSource utility hinges are constructed of high quality stainless steel ensuring durability and dependability. It has a five knuckle full mortise design and allows for easy installation or removal of lightweight doors. The screws are included.
| Color | Silver |
|---|---|
| Dimensions | 3 in L x 2 in W |
| Door Leaf Height | 2in |
| Door Leaf Thickness | 2.7mm |
| Door Leaf Width | 3/4in |
| Finish | Zinc |
| Hole Spacing | 1-1/8in |
| Includes | Mounting Hardware |
| Knuckle Diameter | 4.1mm |
| Knuckle Length | 13mm |
| Material | Steel |
| Mounting Hole Diameter | 5mm |
| Mounting Type | Full Mortise |
| Number of Knuckles | 3 |
| Number of Mounting Holes | 6 |
| Pin Diameter | 3.5mm |
| Pin Type | Loose |
| Range of Motion | 180deg |
| Suitable for | Lightweight Doors |
| Weight Capacity | 28 (Pair)lb |
| Download PDF File |
| Brand | ProSource |
|---|---|
| Weight (lbs) | 0.2500 |
| UPC | 045734647404 |
| MPN | LR-056-PS |
