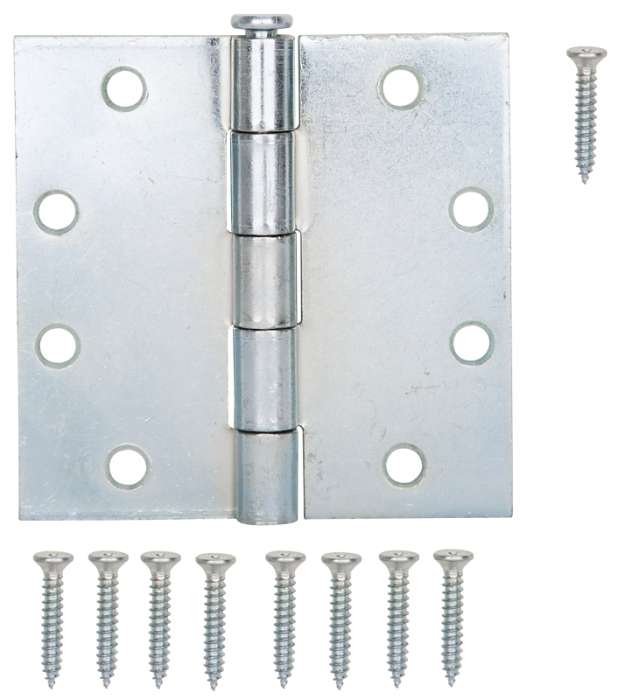

ProSource LR-064-PS Utility Hinge, Steel, Zinc, Removable Pin, 180 deg Range of Motion, Full Mortise Mounting
SKU
ORG2917565
by ProSource
$22.24 /CARD
Delivered in 2-4 business days
In stock
- Steel with zinc plated finish
- Square corner
- Five knuckles, removable pin
- For general utility use on lightweight doors
Category: Building Supplies
The ProSource utility hinges are constructed of high quality stainless steel ensuring durability and dependability. It has a five knuckle full mortise design and allows for easy installation or removal of lightweight doors. The screws are included.
| Color | Silver |
|---|---|
| Dimensions | 4-1/2 in L x 4-1/2 in W |
| Door Leaf Height | 4-1/2in |
| Door Leaf Thickness | 3.5mm |
| Door Leaf Width | 2in |
| Finish | Zinc |
| Hole Spacing | 8mm |
| Includes | Mounting Hardware |
| Knuckle Diameter | 8mm |
| Knuckle Length | 21mm |
| Material | Steel |
| Mounting Hole Diameter | 7mm |
| Mounting Type | Full Mortise |
| Number of Knuckles | 5 |
| Number of Mounting Holes | 8 |
| Pin Diameter | 7mm |
| Pin Type | Removable |
| Range of Motion | 180deg |
| Suitable for | Lightweight Doors |
| Weight Capacity | 90 (Pair)lb |
| Download PDF File |
| Brand | ProSource |
|---|---|
| Weight (lbs) | 0.2500 |
| UPC | 045734647343 |
| MPN | LR-064-PS |
