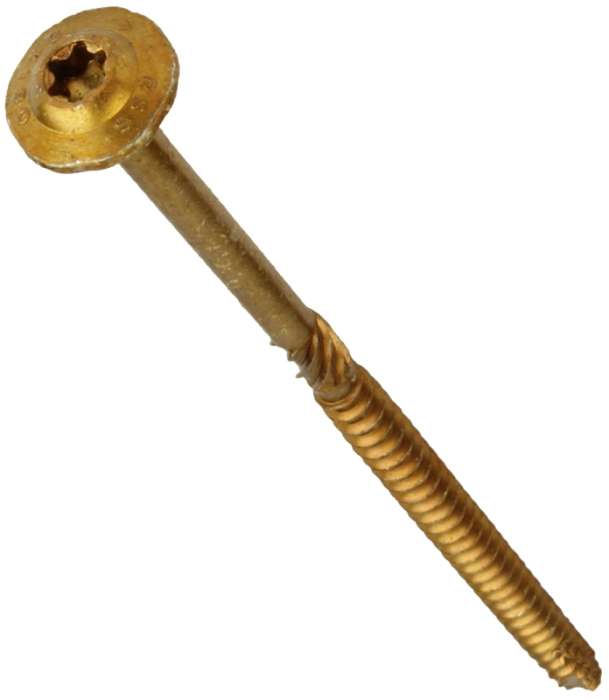

Ramset RSS 14231 Structural Screw, 5-1/8 in L, W-Cut Thread, Washer Head, Recessed Star Drive, Zip-Tip Point, Steel

SKU
ORG5149836
by RAMSET
$38.64 /BOX

Delivered in 2-4 business days

Out of stock
  • Recessed star drive for zero stripping, with six points of contact
  • CEE THREAD enlarges hole to reduce splitting
  • W-CUT for low torque, faster drive
  • ZIP-TIP ensures no pre-drilling and faster penetration
  • Washer head for immense holding power
  • Cutting pockets provide a clean hole, reduces splitting and bore with precision
  • Case hardened steel for high tensile, torque and shear strength
  • Climatek coating is AC257 code approved for use in treated lumber
  • For carrying beams, deck posts, ledger boards, playground equipment, stair rails, other professional applications

GRK's RSS rugged structural screw is made of specially hardened steel to provide you with high tensile, torque and shear strength. The sharp threads and points bite instantly into the material (including hardwood), reducing the splitting effect due to smaller shanks. RSS screws which are 3-1/8 in and longer have a six threaded CEE thread that enlarges the screw hole for the non-threaded portion of the fastener, allowing the wood to settle easily and increasing the screw's drawing strength. The CEE thread also reduces the friction on the screw shank which can result in lowering the driving torque and the likelihood of splitting the wood. This is why the RSS screw is an efficient lag screw alternative. Our round head with built-in shield (washer type head) has no sharp edges like conventional lag screws. The added shoulder (nominal diameter) underneath the washer has the ability to center the RSS screw in pre-drilled hardware like hinges and connector plates.


Applicable MaterialsTreated Lumber
Drive SizeT25
Drive TypeRecessed Star
Head TypeWasher
Includes1 in Bit
Length5-1/8
MaterialSteel
Package Quantity20PK
Point TypeZip-Tip
Shear Strength2948lbf
Tensile Strength4247lbf
Thread Length3-1/2in
Thread TypeW-Cut
TypeRugged
BrandRAMSET
Weight (lbs)1.2500
UPC772691142313
MPN14231
