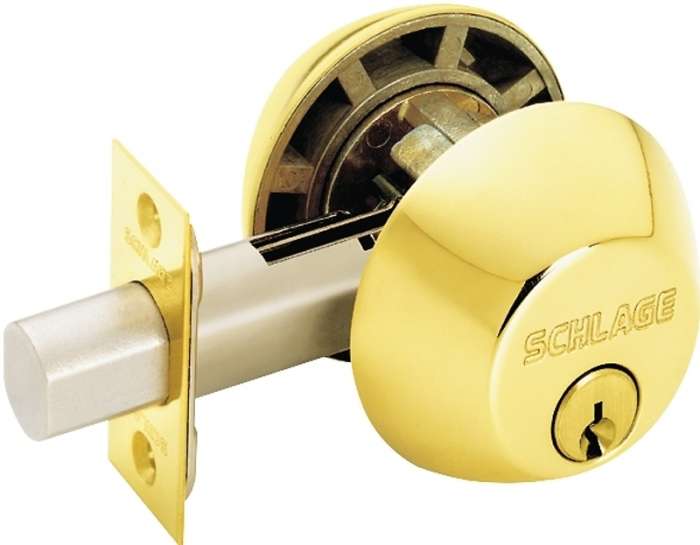

Schlage B62NV 505 Entry Deadbolt, Keyed Alike Key, 1 Grade, 2-Cylinder, Metal, Polished Brass
SKU
ORG6453088
by Schlage
$54.18 /CARD
Delivered in 2-4 business days
In stock
- Unique snap and Stay design holds deadbolt in place while tightening screws
- Biggest adjustable bolt available
- Pick- and bump-resistant
- Adjusts to fit all standard door preparations
- Quality finishes for lasting beauty
- Unique snap and stay design
- For residential single and multi-family doors
Category: Door Hardware
Double cylinder deadbolt in bright brass.
| Backset Size | 2-3/8 2-3/4in |
|---|---|
| Backset Type | Adjustable |
| Bolt Type | Mechanical |
| Commercial/Residential | Residential |
| Cross Bore Diameter | 2-1/8in |
| Cylinder Type | 5-Pin Standard Cylinder |
| Dimensions | 0.879 in L x 2.39 in W x 2.39 in H |
| Door Thickness | 1-3/8 to 1-3/4in |
| Faceplate Size | 1 x 2-1/4in |
| Finish | Bright Brass |
| Includes | Mounting Hardware |
| Interior Locking | Yes |
| Key Type | SC1 |
| Keyway Type | C |
| Latch Housing Diameter | 7/8in |
| Latch Type | Deadbolt Latch |
| Material | Metal |
| Number of Cylinders | 2 |
| Projection Size | 1in |
| Re-Key Technology | Traditional |
| Security Grade | Grade 1 |
| Strike Size | 1.13 in W x 2.75 in H |
| Strike Type | Round Corner |
| Throw Length | 1in |
| Brand | Schlage |
|---|---|
| Weight (lbs) | 2.3800 |
| UPC | 194555135468 |
| MPN | B62NV 505 |
