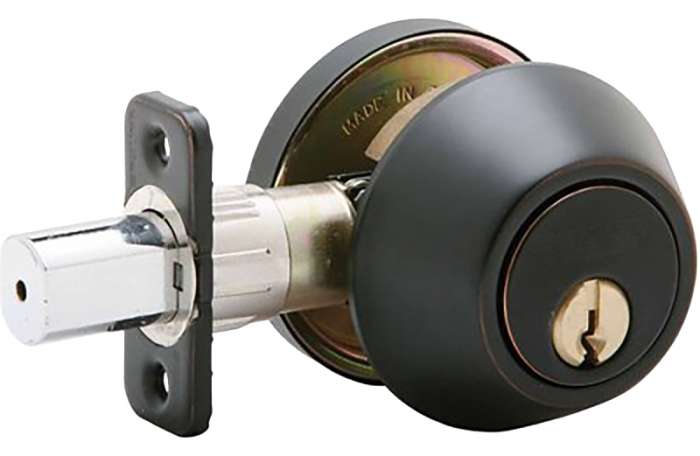

Schlage JD60716 Deadbolt, Aged Bronze, Metal, C Keyway, Re-Key Technology: Traditional, Residential, Grade 3 Grade, Yes
SKU
ORG3075371
by Schlage
$34.28 /CARD
Delivered in 2-4 business days
Out of stock
- Deadbolt thrown or retracted by key from outside or by inside turn unit
- Can be rekeyed to match existing locks or other locks purchased
- Fits all standard door preparations
- Easy to install
- For residential single and multi-family doors
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Door Hardware
Single cylinder deadbolt in aged bronze.
| Backset Size | 2-3/8 2-3/4in |
|---|---|
| Backset Type | Adjustable |
| Commercial/Residential | Residential |
| Cross Bore Diameter | 2-1/8in |
| Cylinder Type | 5-Pin Standard Cylinder |
| Dimensions | 1 in L x 2.56 in W x 2.56 in H |
| Door Thickness | 1-3/8 to 1-3/4in |
| Edge Bore Diameter | 1in |
| Faceplate Size | 1 x 2-1/4in |
| Finish | Aged Bronze |
| Includes | Mounting Hardware |
| Interior Locking | Yes |
| Key Type | SC1 |
| Keyway Type | C |
| Latch Housing Diameter | 7/8in |
| Latch Type | Deadbolt Latch |
| Material | Metal |
| Number of Cylinders | 1 |
| Projection Size | 1in |
| Re-Key Technology | Traditional |
| Security Grade | Grade 3 |
| Strike Size | 1 x 2-1/4in |
| Strike Type | Round Corner |
| Throw Length | 1/2in |
| Brand | Schlage |
|---|---|
| Weight (lbs) | 1.1000 |
| UPC | 043156894215 |
| MPN | JD60V716 |
