Schlage Plymouth F60V PLY/FLA 505 Handleset, Keyed Different Key, 1 Grade, Brass

SKU

ORG5493960

$125.55 /CARD

Out of stock

One tool installation - installs with just a Phillips screwdriver
Patented through bolt slides up and down so you don't have to patch/redrill your door
Graded excellent in residential security, durability and finish
Inside trim, levers are zinc-plated to match finishes indicated
F Series keying handlesets are 5-pin tumbler with two keys per lock
Outside trim, handlesets are solid forged brass, wrought brass trim rings with concealed security inserts
The cylinder trim rings are reinforced by a tapered die-cast security insert installed under the trim ring for resistance to wrenching or prying the cylinder unit
For residential single and multi-family doors

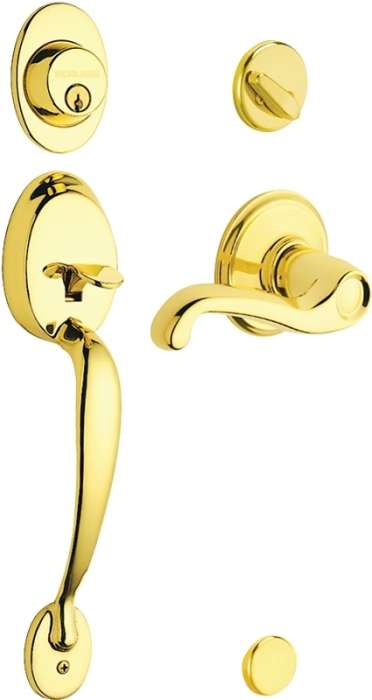

Plymouth handleset with single cylinder deadbolt and Flair lever in bright brass.

Backset Size	2-3/8 2-3/4in
Backset Type	Adjustable
Bolt Throw Size	1in
Bolt Type	Mechanical
Center to Center	5-1/2in
Commercial/Residential	Residential
Cross Bore Diameter	2-1/8in
Cylinder Type	5-Pin Standard Cylinder
Deadbolt Latch Throw	1in
Design	Wave
Dimensions	7/8in
Door Thickness	1-3/8 to 1-7/8in
Edge Bore Diameter	1in
Faceplate Size	1 x 2-1/4in
Finish	Bright Brass
Grip Center to Center	8-3/8 to 9-7/8in
Handle Type	Handleset with Lever
Includes	Mounting Hardware
Interior Locking	Yes
Key Type	Keyed Different
Keyway Type	C
Latch Housing Diameter	7/8in
Latch Type	Deadbolt Latch and Spring Latch
Lock Type	Mechanical
Material	Metal
Number of Cylinders	1
Overall Height	18.06in
Projection Size	1/2 1in
Re-Key Technology	Traditional
Security Grade	Grade 1
Strike Size	1.13 x 2.75in
Strike Type	Full Lip Square Corner
