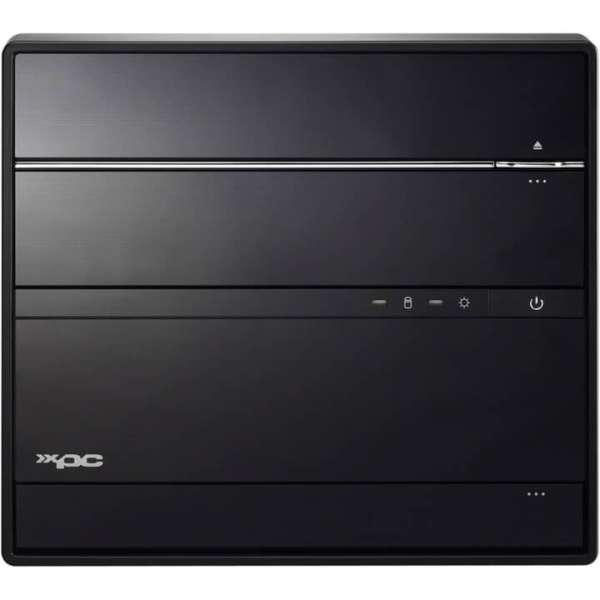

Shuttle Computer Shuttle XPC cube SH570R6 Barebone System, Socket LGA-1200, Intel H570 Chip, 128 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support, 4 Total Memory Slots

SKU
INGM01NQ06
$528.07 /EACH
Out of stock

SUPPORTS 10TH/11TH GENERATION INTEL CORE PROCESSORS AND UP TO THREE UHD DISPLAYSThe Shuttle XPC Barebone SH570R6 shows how discreet a modern PC can look and at the same time how powerful it can be. Its black-brushed aluminium case has barely a volume of 14 litres, but packs everything you need for a high-performance workstation for example. This includes the power of 10th/11th gen. Intel Core processors ("Comet Lake-S" and "Rocket Lake-S"), a dual-slot graphics card, fast M.2 NVMe SSD drives, two 3.5'' hard drives in RAID and up to 128 GB of DDR4 memory, plus an optical drive. Even without a dedicated graphics card, up to three UHD displays are supported (if not an F-type CPU is used).


Brand NameShuttle
Chipset ManufacturerIntel
Chipset ModelH570
ChipsetIntel H570
Controller TypeSerial ATA/600
Depth13.1"
Energy StarYes
Ethernet TechnologyGigabit Ethernet
Graphics Controller Manufacturer (Display & Graphics)Intel
Graphics Controller ManufacturerIntel
Graphics Controller Model (Display & Graphics)UHD Graphics
Graphics Controller ModelUHD Graphics
Graphics Memory Accessibility (Display & Graphics)Shared
Graphics Memory AccessibilityShared
Graphics Memory Technology (Display & Graphics)DDR4 SDRAM
HDMI (Rear) (Interfaces/Ports)Yes
Height7.5"
Input Voltage120 V AC
Input Voltage230 V AC
Manufacturer Part NumberSH570R6
ManufacturerShuttle, Inc
Maximum Memory Supported128 GB
Maximum Memory128 GB
Maximum Power Supply Wattage300 W
Memory StandardDDR4-3200/PC4-25600
Memory TechnologyDDR4 SDRAM
Number of 3.5" Bays (I/O Expansions)2
Number of 3.5" Bays2
Number of External 5.25" Bays (I/O Expansions)1
Number of External 5.25" Bays1
Number of Onboard USB 2.0 Ports (Interfaces/Ports)1
Number of PCI Express x16 Slots (I/O Expansions)1
Number of PCI Express x16 Slots1
Number of PCI Express x4 Slots (I/O Expansions)1
Number of PCI Express x4 Slots1
Number of SATA Interfaces (Interfaces/Ports)4
Number of SATA Interfaces4
Number of Total Expansion Bays (I/O Expansions)3
Number of Total Expansion Slots (I/O Expansions)2
Number of Total Expansion Slots2
Number of Total Memory Slots4
Number of USB 3.2 Gen 1 Ports (Interfaces/Ports)3
Number of USB 3.2 Gen 2 Ports (Interfaces/Ports)4
Operating System SupportedLinux
Operating System SupportedWindows 10
Operating System SupportedWindows 11
Processor Socket (Processor)Socket LGA-1200
Processor SocketSocket LGA-1200
Processor Supported (Processor)Celeron
Processor Supported (Processor)Core i3
Processor Supported (Processor)Core i5
Processor Supported (Processor)Core i7
Processor Supported (Processor)Core i9
Processor Supported (Processor)Pentium Gold
Processor SupportedCeleron
Processor SupportedCore i3
Processor SupportedCore i5
Processor SupportedCore i7
Processor SupportedCore i9
Processor SupportedPentium Gold
Product ColorBlack Aluminum
Product FamilyXPC cube
Product LineXPC cube
Product ModelSH570R6
Product NameBAREBONE XPC cube SH570R6
Product TypeBarebone System
Total Number of USB Ports (Interfaces/Ports)13
Total Number of USB Ports13
USB Type-C (Front) (Interfaces/Ports)Yes
USB Type-C Detail (Interfaces/Ports)USB 3.2 Gen Type-C port (5 Gbps)
Weight (Approximate)7.72 lb
Width8.5"
BrandShuttle
Weight (lbs)10.300000
UPC887993005416
MPNSH570R6
