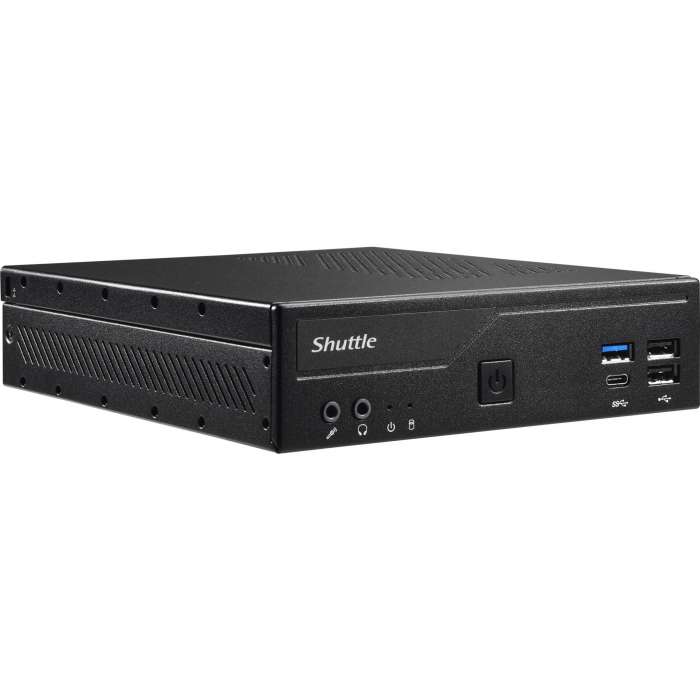

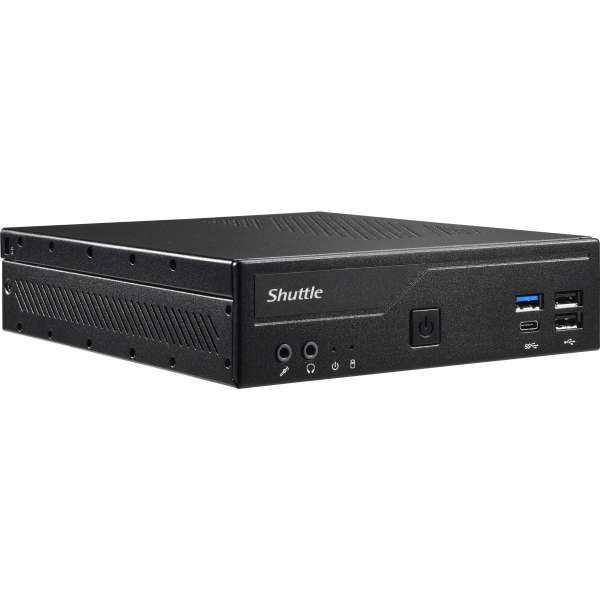

Shuttle Computer Shuttle XPC slim DH610 Barebone System, Slim PC, Socket LGA-1700, 1 x Processor Support, Intel H610 Chip
SKU
INGM10HV42
by Shuttle
$554.26 /EACH
Delivered in 2-4 business days
In stock
Only 3 left
- Intel Core i7 processor provides lightning fast speed and peak performance even for toughest tasks and intensive games.
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation.
- 2.5 Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information.
- With 8 USB ports, connect/disconnect devices while not having to shut down the system.
- With Serial ATA/600 interface get superb reliability and high-speed data transfer.
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance.
- Provides 8 USB ports for responsive and expanded device connections .
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Barebone Systems
Robust 1.3-litre Slim PC supports Intel Core Gen. 12 processors "Alder Lake-S" and two UHD displaysThe Shuttle XPC slim Barebone DH610 with H610 chipset houses the performance of Intel's 12th generation Core desktop processors (codenamed Alder Lake-S) for socket LGA1700 in a compact 1.3-litre format. The DH610 allows for three Ultra HD displays to be operated at the same time via 1x HDMI and 2x DisplayPort. It also offers Dual Intel LAN (one supports 2.5G speed), eight USB ports and two COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
| Brand Name | Shuttle |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | H610 |
| Chipset | Intel H610 |
| Controller Type | Serial ATA/600 |
| Depth | 7.5" |
| Energy Star | Yes |
| Environmental Certification | ErP |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Form Factor | Slim PC |
| Graphics Controller Manufacturer (Display & Graphics) | Intel |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model (Display & Graphics) | HD Graphics |
| Graphics Controller Model | HD Graphics |
| Graphics Memory Accessibility (Display & Graphics) | Shared |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology (Display & Graphics) | DDR4 SDRAM |
| HDMI (Rear) (Interfaces/Ports) | Yes |
| Height | 1.7" |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | DH610 |
| Manufacturer | Shuttle, Inc |
| Maximum Memory Supported | 64 GB |
| Maximum Memory | 64 GB |
| Maximum Power Supply Wattage | 120 W |
| Memory Standard | DDR4-3200/PC4-25600 |
| Memory Technology | DDR4 SDRAM |
| Number of Internal 2.5" Bays (I/O Expansions) | 1 |
| Number of Processors Supported (Processor) | 1 |
| Number of Processors Supported | 1 |
| Number of Total Expansion Bays (I/O Expansions) | 1 |
| Number of Total Memory Slots | 2 |
| Number of USB 3.2 Gen 1 Ports (Interfaces/Ports) | 3 |
| Operating System Supported | Linux |
| Operating System Supported | Windows 10 x64 |
| Operating System Supported | Windows 11 x64 |
| Package Contents | XPC slim DH610 Barebone System; Multi-Language User Guide (EN, DE, FR, ES, JP, KR, SC, TC); VESA Mount For 75/100 mm Standard (two metal brackets); 4 x Screws M3 x 5 mm (screws together VESA mount and PC); 4 x Screws M4 x 10 mm (to affix VESA mount on the PC); 4 x Screws M3 x 4 mm (to mount a 2.5" storage device into the bay); 2 x Screws M3 x 5 mm (silver colour, to mount two M.2 cards); Driver DVD (Windows 64-bit); Serial ATA Cable For 2.5" Drive Including Power Cable; External 120 W Power Adapter With Power Cord; Protection Cap For CPU Socket (do not use if heatpipe or fan is mounted); Heatsink Compound |
| Processor Socket (Processor) | Socket LGA-1700 |
| Processor Socket | Socket LGA-1700 |
| Processor Supported (Processor) | Celeron |
| Processor Supported (Processor) | Core i3 |
| Processor Supported (Processor) | Core i5 |
| Processor Supported (Processor) | Core i7 |
| Processor Supported (Processor) | Core i9 |
| Processor Supported (Processor) | Pentium Gold |
| Processor Supported | Celeron |
| Processor Supported | Core i3 |
| Processor Supported | Core i5 |
| Processor Supported | Core i7 |
| Processor Supported | Core i9 |
| Processor Supported | Pentium Gold |
| Product Color | Black |
| Product Family | XPC slim |
| Product Line | XPC slim |
| Product Model | DH610 |
| Product Name | XPC slim DH610 Barebone System |
| Product Type | Barebone System |
| Total Number of USB Ports (Interfaces/Ports) | 8 |
| Total Number of USB Ports | 8 |
| USB Type-C (Front) (Interfaces/Ports) | Yes |
| USB Type-C Detail (Interfaces/Ports) | 1 x USB 3.2 Gen 1 Type-C |
| Weight (Approximate) | 2.87 lb |
| Width | 6.5" |
| Download PDF File |
| Brand | Shuttle |
|---|---|
| Weight (lbs) | 1.4000 |
| UPC | 0887993005119 |
| MPN | DH610 |
