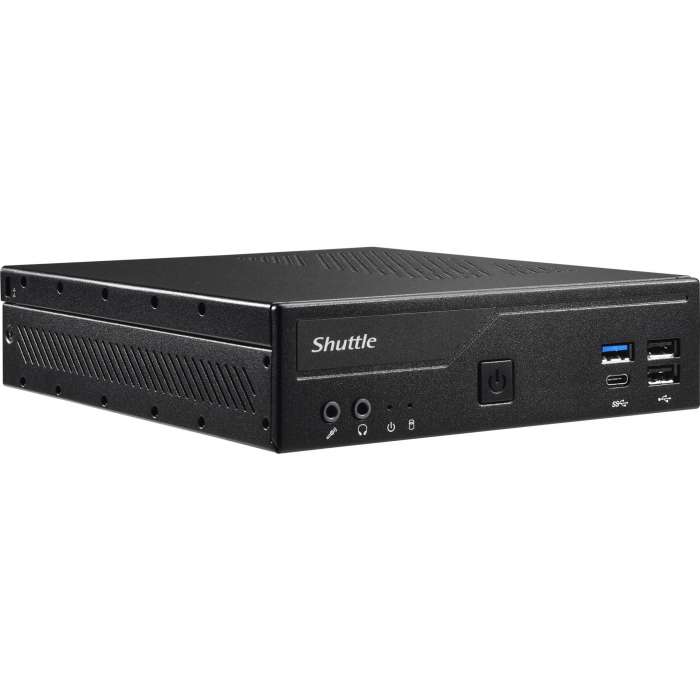

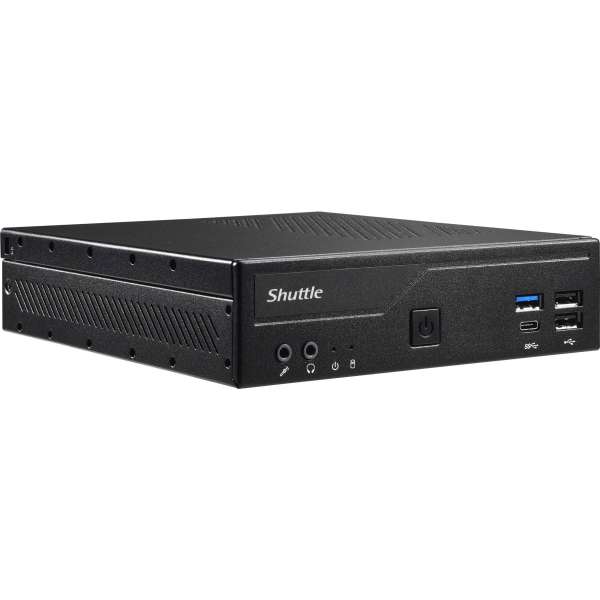

Shuttle Computer Shuttle XPC slim DH610S Barebone System, Slim PC, Socket LGA-1700, 1 x Processor Support, Intel H610 Chip
SKU
INGM10HV43
by Shuttle
$372.16 /EACH
Delivered in 2-4 business days
In stock
Only 9 left
- Compatible Core i9 processor lets you perform all your computational tasks at a swift pace; Perform computational tasks effectively accrediting the Core i9 processor
- Intel Core i5 processor provides you the solid performance to watch videos, play games, and on the same node its adaptability makes you more productive; Serial ATA/600 interface provides quick data transfer and greater throughput
- With Serial ATA/600 interface get superb reliability and high-speed data transfer; DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput; DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Featuring Gigabit Ethernet port for ultra-fast network speeds; Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network; Featuring 8 USB ports to connect USB-compatible devices
- Provides 8 USB ports for responsive and expanded device connections
Category: Barebone Systems
Robust 1.3-litre Slim PC supports Intel Core Gen. 12 processors "Alder Lake-S" and two UHD displaysThe Shuttle XPC slim Barebone DH610S with H610 chipset houses the performance of Intel's 12th generation Core desktop processors (codenamed Alder Lake-S) for socket LGA1700 in a compact 1.3-litre format. The DH610S allows for two Ultra HD displays to be operated at the same time via HDMI and DisplayPort. It also offers Intel LAN, eight USB ports and Audio ports. The slim metal chassis provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
| Brand Name | Shuttle |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | H610 |
| Chipset | Intel H610 |
| Controller Type | Serial ATA/600 |
| Depth | 7.5" |
| Energy Star | Yes |
| Environmental Certification | ErP |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form Factor | Slim PC |
| Graphics Controller Manufacturer (Display & Graphics) | Intel |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model (Display & Graphics) | HD Graphics |
| Graphics Controller Model | HD Graphics |
| Graphics Memory Accessibility (Display & Graphics) | Shared |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology (Display & Graphics) | DDR4 SDRAM |
| HDMI (Rear) (Interfaces/Ports) | Yes |
| Height | 1.7" |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | DH610S |
| Manufacturer | Shuttle, Inc |
| Maximum Memory Supported | 64 GB |
| Maximum Memory | 64 GB |
| Maximum Power Supply Wattage | 120 W |
| Memory Standard | DDR4-3200/PC4-25600 |
| Memory Technology | DDR4 SDRAM |
| Number of Internal 2.5" Bays (I/O Expansions) | 1 |
| Number of Processors Supported (Processor) | 1 |
| Number of Processors Supported | 1 |
| Number of SATA Interfaces (Interfaces/Ports) | 1 |
| Number of SATA Interfaces | 1 |
| Number of Total Expansion Bays (I/O Expansions) | 1 |
| Number of Total Memory Slots | 2 |
| Number of USB 3.2 Gen 1 Ports (Interfaces/Ports) | 3 |
| Operating System Supported | Linux |
| Operating System Supported | Windows 10 x64 |
| Operating System Supported | Windows 11 x64 |
| Package Contents | XPC slim DH610S Barebone System; Multi-Language User Guide (EN, DE, FR, ES, JP, KR, SC, TC); 4 x Screws M3 x 4 mm (to mount a 2.5" storage device into the bay); 2 x Screws M3 x 5 mm (silver colour, to mount two M.2 cards); Driver DVD (Windows 64-bit); Serial ATA Cable for 2.5" Drive Including Power Cable; External 120 W Power Adapter with Power Cord; Protection Cap for CPU Socket (do not use if heatpipe or fan is mounted); Heatsink Compound |
| Processor Socket (Processor) | Socket LGA-1700 |
| Processor Socket | Socket LGA-1700 |
| Processor Supported (Processor) | Celeron |
| Processor Supported (Processor) | Core i3 |
| Processor Supported (Processor) | Core i5 |
| Processor Supported (Processor) | Core i7 |
| Processor Supported (Processor) | Core i9 |
| Processor Supported (Processor) | Pentium Gold |
| Processor Supported | Celeron |
| Processor Supported | Core i3 |
| Processor Supported | Core i5 |
| Processor Supported | Core i7 |
| Processor Supported | Core i9 |
| Processor Supported | Pentium Gold |
| Product Color | Black |
| Product Family | XPC slim |
| Product Line | XPC slim |
| Product Model | DH610S |
| Product Name | XPC slim DH610S Barebone System |
| Product Type | Barebone System |
| Total Number of USB Ports (Interfaces/Ports) | 8 |
| Total Number of USB Ports | 8 |
| USB Type-C (Front) (Interfaces/Ports) | Yes |
| USB Type-C Detail (Interfaces/Ports) | 1 x USB 3.2 Gen 1 Type-C |
| Weight (Approximate) | 2.87 lb |
| Width | 6.5" |
| UPC | 887993005126 |
|---|---|
| Weight (lbs) | 5.1500 |
| MPN | DH610S |
| Brand | Shuttle |
