(142814 ratings)

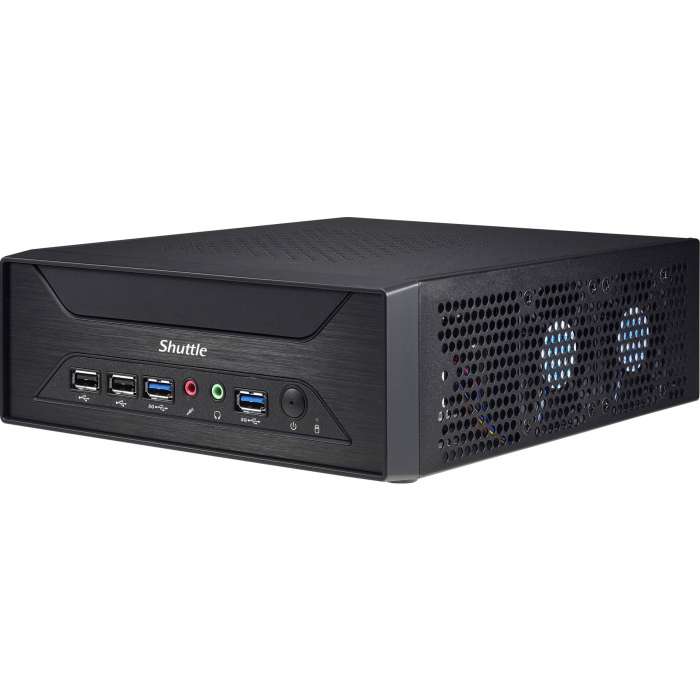

Shuttle Computer Shuttle XPC slim XH510G Barebone System, Socket LGA-1200, 1 x Processor Support, Intel H510 Chip, 64 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support
SKU
INGM10HV47
by Shuttle
$449.48 /EACH
Delivered in 2-4 business days
Out of stock
- Compatible Core i3 processor lets you perform all your computational tasks at a swift pace.
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation.
- Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance.
- Connect USB-enabled devices via 8 USB ports.
- Serial ATA/600 interface provides quick data transfer and greater throughput.
- Perform computational tasks effectively accrediting the Core i3 processor.
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput.
- Featuring Gigabit Ethernet port for ultra-fast network speeds.
- Provides 8 USB ports for responsive and expanded device connections .
Category: Barebone Systems
FLEXIBLE 3-LITRE PC WITH PCIE SLOT The Shuttle XPC slim Barebone XH510G is a 3-litre PC to house one single-slot PCI-Express expansion cards. Together with an LGA 1200 Intel Core desktop processor of the Intel Core Gen 10/11 range, this platform is perfectly suited for many professional applications where performance, flexibility and a compact form factor matter. This includes video wall presentations, graphics workstations, media capturing, surveillance, POS, POI as well as network and industrial applications. Even mid-range gaming is possible
| 64-bit Processing (Processor) | Yes |
|---|---|
| 64-bit Processing | Yes |
| Brand Name | Shuttle |
| Chipset Manufacturer | Intel |
| Chipset Model | H510 |
| Chipset | Intel H510 |
| Controller Type | Serial ATA/600 |
| Depth | 9.8" |
| Energy Star | Yes |
| Environmental Certification | ENERGY STAR 8.0 |
| Environmental Certification | ErP |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| HDMI (Rear) (Interfaces/Ports) | Yes |
| Height | 3.1" |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | XH510G |
| Manufacturer | Shuttle, Inc |
| Maximum Memory Supported | 64 GB |
| Maximum Memory | 64 GB |
| Maximum Power Supply Wattage | 180 W |
| Memory Standard | DDR4-3200/PC4-25600 |
| Memory Technology | DDR4 SDRAM |
| Number of Internal 2.5" Bays (I/O Expansions) | 1 |
| Number of PCI Express x16 Slots (I/O Expansions) | 1 |
| Number of PCI Express x16 Slots | 1 |
| Number of Processors Supported (Processor) | 1 |
| Number of Processors Supported | 1 |
| Number of Total Expansion Bays (I/O Expansions) | 1 |
| Number of Total Expansion Slots (I/O Expansions) | 1 |
| Number of Total Expansion Slots | 1 |
| Number of Total Memory Slots | 2 |
| Number of USB 3.2 Gen 1 Ports (Interfaces/Ports) | 4 |
| Operating System Supported | Linux |
| Operating System Supported | Windows 10 x64 |
| Operating System Supported | Windows 11 x64 |
| Package Contents | XPC slim XH510G Barebone System; Multi-language installation guide (EN, DE, FR, ES, JP, KR, SC, TC); DVD Driver; Bracket for one 2.5" drive; 4 x Screws M3 x 4 mm; 3 x Screws M2 x 5 mm; VESA Mount Brackets; 4 x Screws M3 x 5 mm; 4 x Screws M4 x 10 mm; 3 x Screws M3 x 5 mm; Internal Adapter Cable with 4-Pin Molex Connector for 5v/2a Auxiliary Voltage; External Power Adapter With 1.7 M Power Cord With Earthing Contact; Protector Cap for the CPU Socket (do not use if heat-pipe or fan is mounted); CPU Heatpipe Cooling System with Heatsink Compound |
| Processor Socket (Processor) | Socket LGA-1200 |
| Processor Socket | Socket LGA-1200 |
| Processor Supported (Processor) | Celeron |
| Processor Supported (Processor) | Core i3 |
| Processor Supported (Processor) | Core i5 |
| Processor Supported (Processor) | Core i7 |
| Processor Supported (Processor) | Core i9 |
| Processor Supported (Processor) | Pentium Gold |
| Processor Supported | Celeron |
| Processor Supported | Core i3 |
| Processor Supported | Core i5 |
| Processor Supported | Core i7 |
| Processor Supported | Core i9 |
| Processor Supported | Pentium Gold |
| Product Family | XPC slim |
| Product Line | XPC slim |
| Product Model | XH510G |
| Product Name | XPC slim XH510G Barebone System |
| Product Type | Barebone System |
| Total Number of USB Ports (Interfaces/Ports) | 8 |
| Total Number of USB Ports | 8 |
| Weight (Approximate) | 4.19 lb |
| Width | 7.9" |
| Download PDF File |
| Brand | Shuttle |
|---|---|
| Weight (lbs) | 7.5000 |
| UPC | 0887993005041 |
| MPN | XH510G |
