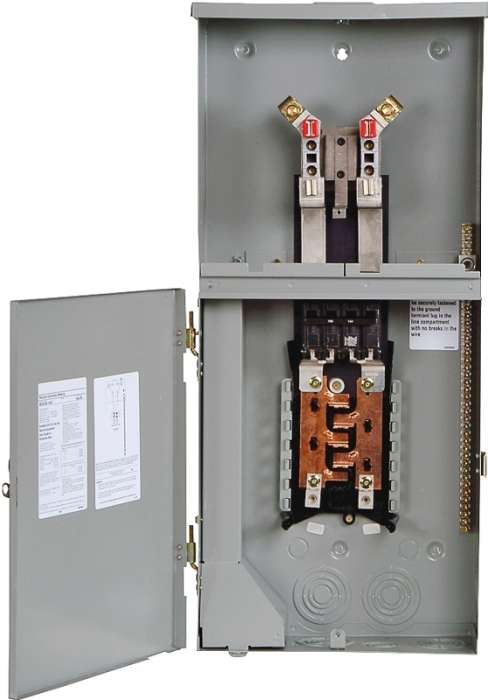

Siemens MC0816B1200CT Meter Combination Load Center, 200 A, 8 -Space, 4 -Jaw, 16 -Circuit, NEMA 3R Enclosure
SKU
ORG3374873
by Siemens
$305.25 /EACH
Delivered in 2-4 business days
Out of stock
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Categories: Tools & Garage, Electrical, Rough Electrical, Panel Boxes, Meter Bases
Combination meter socket. 200 A main breaker installed, Single phase, 3-wire, Insta-Wire neutrals. Eight spaces, 16 circuits. 120/240 V. 22,000 AIC rating. Four jaws. Tin-plated copper bus bars. NEMA type 3R outdoor enclosure. Overhead or underground feed. Feed thru lugs provided. Key hole shaped mounting holes for easy hanging. Deadfront pull ring and side hinge door. Captive dead front screw. RX style hub sold separately. UL Listed.
| Amps | 200 |
|---|---|
| Brand Name | Siemens |
| Breakers Included | Yes |
| Depth | 5 |
| Indoor or Outdoor | Indoor |
| Length | 32 |
| Maximum Amperage | 200 |
| Mounting Type | Surface |
| Number of Spaces | 8 |
| Packaging Type | Boxed |
| Product Type | Meter Socket |
| Service Feed Type | Overhead/Underground |
| Socket Type | Ring |
| UL Listed | Yes |
| Volts | 120/240 |
| Width | 14 |
| Download PDF File |
| Brand | Siemens |
|---|---|
| Weight (lbs) | 32.5000 |
| UPC | 783643510678 |
| MPN | MC0816B1200CT |
