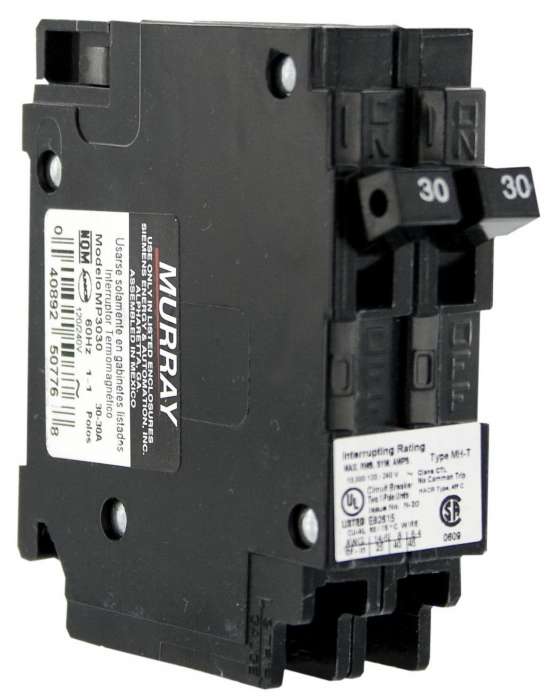

Siemens Murray MP3030 Duplex, Type MH-T Circuit Breaker, 120 V, Thermal Magnetic Trip, Plug-In Mounting
SKU
ORG8358418
by Siemens
$24.89 /EACH
Delivered in 2-4 business days
Out of stock
Siemens Murray Circuit Breaker, Type: Duplex, Type MH-T, 120 V, 30 A, 50/60 Hz Operating, 1 -Phase, 1 -Pole, 10 kA IR, Frame Size: 1/2 in, Magnetic, Thermal Actuator, Thermal Magnetic Trip, 12 to 6, 14 to 6 AWG, Lug Terminal, Plug-In Mounting, 3.12 in L x 1.5 in W Dimensions, 40 deg C Operating
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Siemens Murray Circuit Breaker, Duplex, Type MH-T, 120 V, 30 A, 50/60 Hz Operating Frequency, 1 ph, 1 Pole, 10 kA Interrupt, 1/2 in Frame, Magnetic, Thermal Actuator, 12 to 6, 14 to 6 AWG Wire, Lug Terminal, Plug Mounting, Dimensions: 3.12 in L x 1.5 in W, 40 deg C Operating
| Actuator Type | Magnetic Thermal |
|---|---|
| Current Rating | 30A |
| Dimensions | 3.12 in L x 1.5 in W |
| Frame Size | 1/2in |
| Interrupt Rating | 10kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Operating Frequency | 50/60Hz |
| Operating Temperature | 40deg C |
| Terminal Type | Lug |
| Type | Duplex Type MH-T |
| Voltage Rating | 120V |
| Wire Size | 12 to 6 14 to 6AWG |
| Brand | Siemens |
|---|---|
| Weight (lbs) | 0.4000 |
| UPC | 040892507768 |
| MPN | MP3030 |
