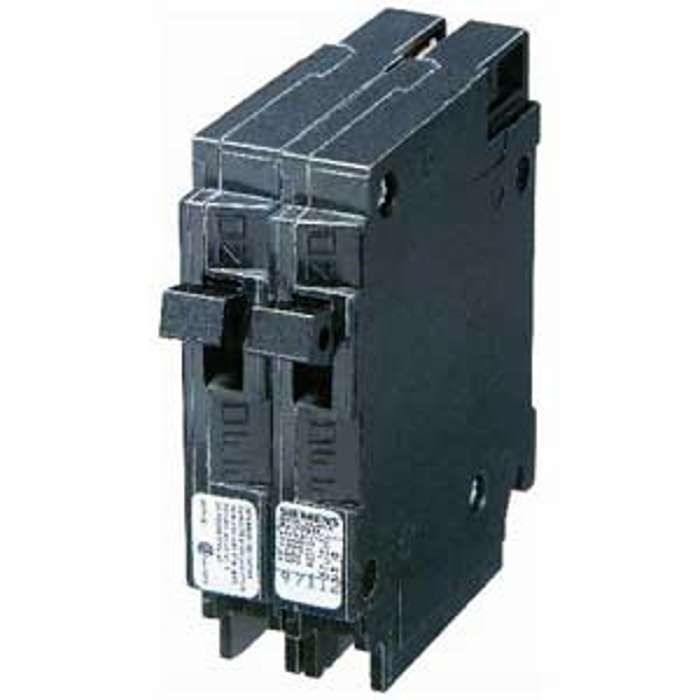

Siemens Q2020NC Circuit Breaker, Duplex, Mini, 20 A, 1 -Pole, 120/240 V, Fixed Trip, Plug Mounting
SKU
ORG1627413
by Siemens
$54.65 /EACH
Delivered in 2-4 business days
Out of stock
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Non-interchangeable trip. For retrofit use on I-T-E load centers built prior to 1965. 120/240 VAC. 1 in per duplex.
| Actuator Type | Toggle |
|---|---|
| Current Rating | 20A |
| Dimensions | 2 in L x 3 in W x 3 in H |
| Frame Type | QT |
| Interrupt Rating | 10kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Operating Frequency | 50/60Hz |
| Operating Temperature | 40deg C |
| Suitable for | Siemens EQ Load Centers |
| Terminal Type | Lug |
| Trip Type | Fixed |
| Type | Duplex Mini |
| Voltage Rating | 120/240V |
| Wire Size | 14 to 8AWG |
| Brand | Siemens |
|---|---|
| Weight (lbs) | 0.4000 |
| UPC | 662862004017 |
| MPN | Q2020NC |
