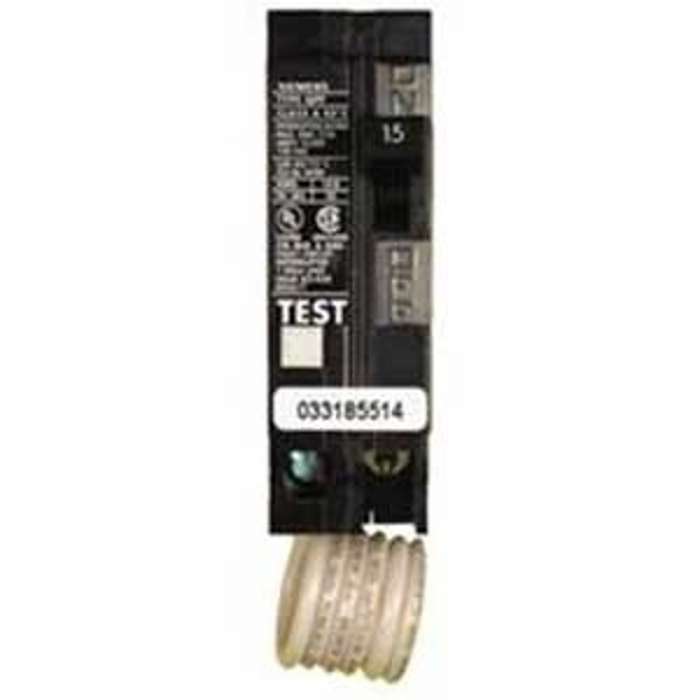

Siemens QF115A Circuit Breaker, GFCI, 15 A, 1 -Pole, 120 V, Plug Mounting

SKU
ORG1627587
$159.83 /EACH

Delivered in 2-4 business days

Out of stock
  • Resists false tripping, shielded to prevent RF interference
  • Standard 1 in per pole format with plug-in design
  • For use in spas, hot tubs, kitchens, bathrooms and more

Ground fault circuit interrupters are an effective means of preventing severe electrical shock. To protect equipment from damaging ground faults, Siemens GFCIs continuously monitor the difference in current between the hot and neutral conductors. If the electricity going to an outlet equals the current coming back from the outlet, the GFCI is dormant. If the electricity going to an outlet is greater than 5 mA than the current coming back from the outlet, the GFCI will open the circuit to stop of flow of electricity.


Actuator TypeSwitch
Current Rating15A
Dimensions12.7 in L x 7 in W x 2.38 in D
Interrupt Rating10kA
Mounting TypePlug
Number of Poles1
Operating Frequency50/60Hz
Operating Temperature40deg C
Terminal TypeLug
Trip Sensitivity5mA
TypeGFCI
Voltage Rating120V
Wire Size14 to 10AWG
BrandSiemens
Weight (lbs)0.4000
UPC804766707520
MPNQF115ACSA
