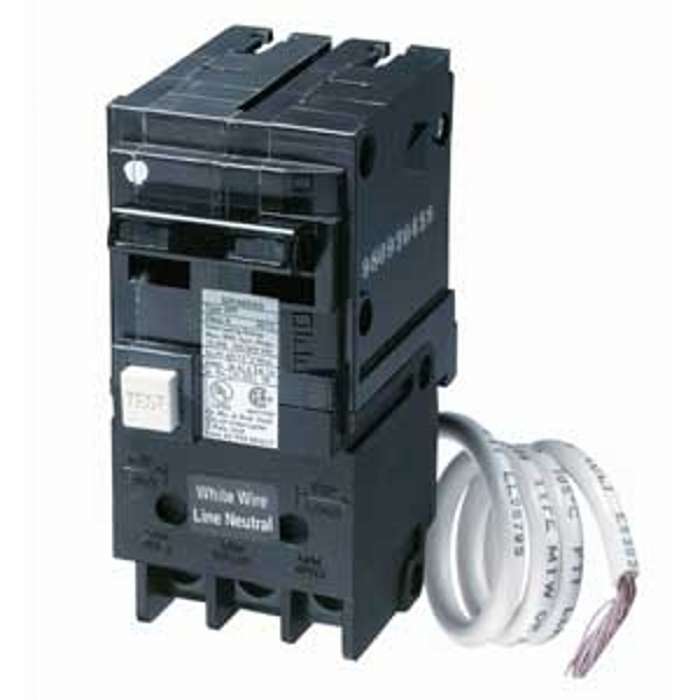

Siemens QF250A Circuit Breaker, GFCI, Type Q, 50 A, 2 -Pole, 120/240 V, Plug Mounting, Black

SKU
ORG1627744
$396.81 /EACH

Delivered in 2-4 business days

Out of stock
  • Resists false tripping, shielded to prevent RF interference
  • Standard 1 in per pole format with plug-in design
  • For use in spas, hot tubs, kitchens, bathrooms and more

Ground fault circuit interrupters are an effective means of preventing severe electrical shock. To protect equipment from damaging ground faults, Siemens GFCIs continuously monitor the difference in current between the hot and neutral conductors. If the electricity going to an outlet equals the current coming back from the outlet, the GFCI is dormant. If the electricity going to an outlet is greater than 5 mA than the current coming back from the outlet, the GFCI will open the circuit to stop of flow of electricity.


Actuator TypeMagnetic Thermal
ColorBlack
Current Rating50
Dimensions6.9 in W x 12.6 in D x 8 in H
Frame Size2
Frame TypeQP
Interrupt Rating10
Mounting TypePlug
Number of Phases1
Number of Poles2
Operating Frequency60
Terminal TypeLug
Trip Sensitivity5
TypeGFCI Type Q
Voltage Rating120/240
Wire Size14 to 10
BrandSiemens
Weight (lbs)1.3100
UPC804766707506
MPNQF250ACSA
