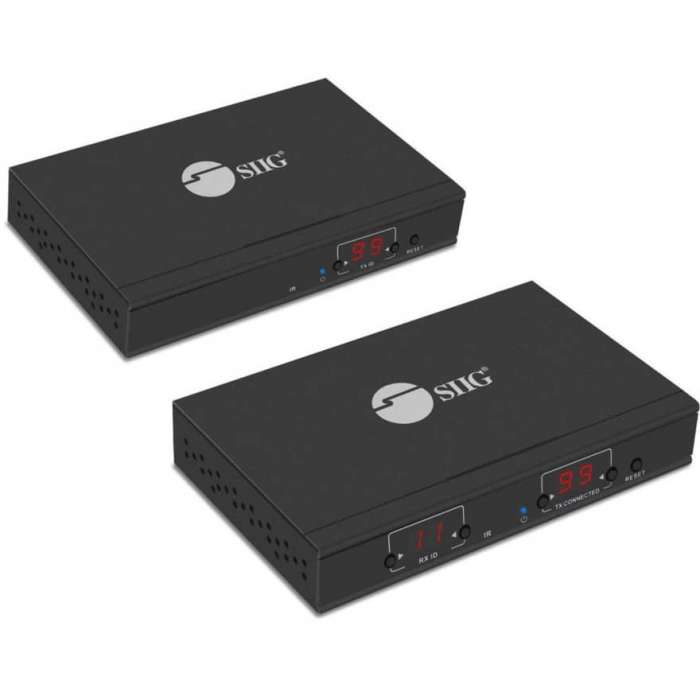

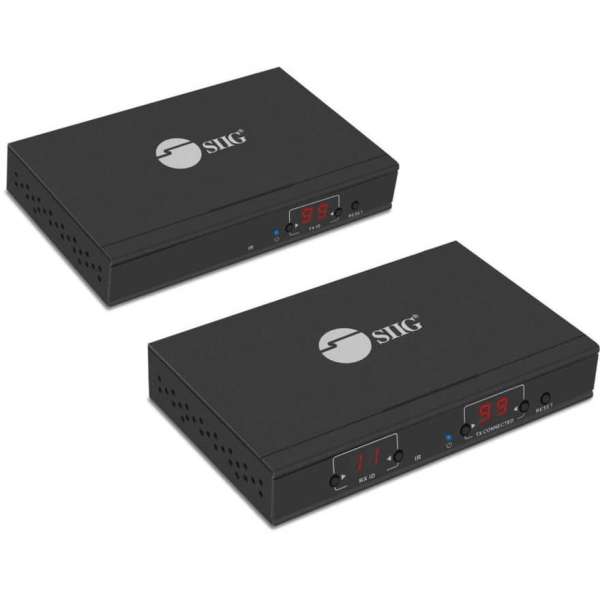

Siig 1080p HDMI Over IP Extender with IR, Kit, 120M, Over IP Networks, Many to Many
Delivered in 2-4 business days
Features; Extends HDMI signals with stereo audio to a remote display over UTP CAT5e/6 cabling up to 120 meters; . Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S2) and receiver units (part# CE-H23C11-S2) sold separately; . Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images; . Supports IR pass back function to control the source device from RX location; . Supports computer control software to select and switch between source devices (Matrix only); . Supports HDbit-T protocol with H.264 compression over IP; . HDMI output on the transmitter allows you to monitor the HDMI signal at the source location; . RS-232 pass-through connection to control RS-232 enabled devices at either direction
| Application/Usage | Educational Facilities |
|---|---|
| Application/Usage | Office |
| Application/Usage | Shopping Center |
| Brand Name | SIIG |
| Connectivity Technology | Wired |
| Country of Origin | China |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Graphics Modes (Video) | Full HD |
| HDMI In (Interfaces/Ports) | Yes |
| HDMI Out (Interfaces/Ports) | Yes |
| Manufacturer Part Number | CE-H23A11-S2 |
| Manufacturer | SIIG, Inc |
| Maximum Operating Distance | 393.70 ft |
| Maximum Video Resolution (Video) | 1920 x 1080 |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) (Interfaces/Ports) | Yes |
| Number of HDMI Inputs (Interfaces/Ports) | 1 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs (Interfaces/Ports) | 2 |
| Number of Input Devices Supported | 1 |
| Number of Network (RJ-45) Ports (Interfaces/Ports) | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Number of Output Devices Supported | 1 |
| Package Contents | HDMI Over IP Extender with IR - Kit; 2 x Power Adapters; IR Blaster Extension Cable and IR Receiver Extension Cable; 4 x Mounting Ears; 8 x Screw Kit; Remote Control; 2 x 3 Pin Phoenix Connectors; User Reference Guide |
| Product Color | Black |
| Product Model | CE-H23A11-S2 |
| Product Name | HDMI Over IP Extender with IR - Kit |
| Product Type | Video Extender Transmitter/Receiver |
| Receiver Depth | 5.50" |
| Receiver Height | 0.94" |
| Receiver Weight (Approximate) | 9.60 oz |
| Receiver Width | 3.27" |
| Transmitter Depth | 5.50" |
| Transmitter Height | 0.94" |
| Transmitter Weight (Approximate) | 9.60 oz |
| Transmitter Width | 3.27" |
| Twisted Pair Cable Standard | Category 6 |
| Download PDF File |
| Brand | SIIG |
|---|---|
| Weight (lbs) | 2.3500 |
| UPC | 662774045092 |
| MPN | CE-H23A11-S2 |
