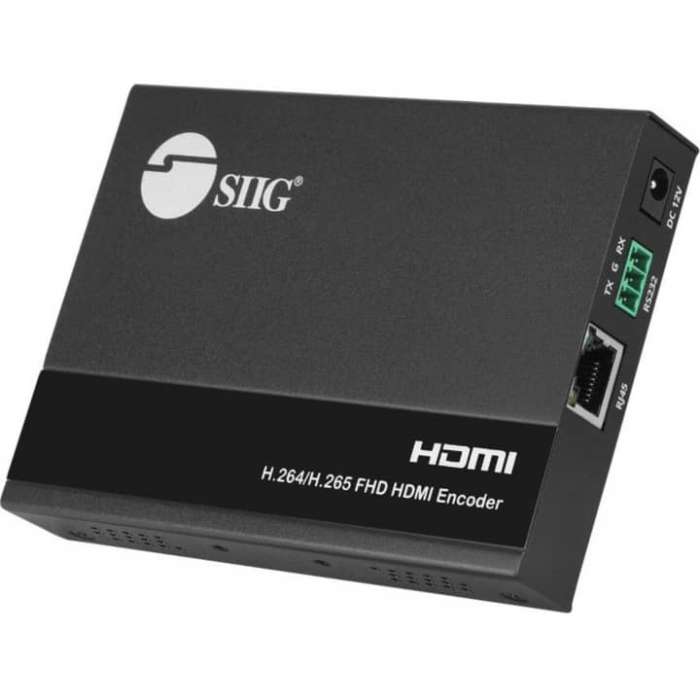

SIIG 1080p HDMI Video H.264 H.265 IPTV Encoder with Loopout, Supports RTSP / HLS / RTMP (S) / RTP / UDP Protocols, Supports CBR/VBR Two Coding Modes

SKU
INGM01YR52
by SIIG
$235.33 /EACH

Delivered in 2-4 business days

Out of stock
  • Support multiple video decoding: H.265 mainstream, H.264 basic, mainstream and advanced quality, MJPEG/JPEG basic quality.
  • Broadcast resolutions supports up to 1080p@60Hz 4:4:4 8 bit, and support HDCP 1.4.
  • Supports RTSP / HLS / RTMP (S) / RTP / UDP protocols.
  • Audio coding format supports AAC, AAC+, AAC++/AC3/MP2/MP3.
  • Maximum supports 2 channel video stream decoding, supports 1 channel only audio stream decoding.
  • Preview your incoming HDMI signal via the local HDMI pass-thru output port.
  • Support CBR/VBR two coding modes, maximum code rate up to 40Mbps (Main code stream is 40M, Sub-code stream is 8M).
  • Support analog audio extraction and analog audio embedded.
  • High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operation .

Audio Line In (Interfaces/Ports)Yes
Audio Line Out (Interfaces/Ports)Yes
Brand NameSIIG
Country of OriginChina
Depth3.5"
Environmental CertificationRoHS
Environmentally FriendlyYes
FunctionsAudio Decoder
FunctionsAudio Embedding
FunctionsAudio Extraction
FunctionsAudio Streaming
FunctionsVideo Decoding
FunctionsVideo Encoding
FunctionsVideo Streaming
HDMI (Interfaces/Ports)Yes
HDMIYes
Height0.8"
Manufacturer Part NumberCE-H27511-S1
ManufacturerSIIG, Inc
Maximum Resolution1920 x 1080
Network (RJ-45) (Interfaces/Ports)Yes
Network (RJ-45)Yes
Package ContentsHDMI Video H.264 H.265 IPTV Encoder with Loopout; Power Adapter DC 12V/1A; Mounting Ears & Screw Kit; Phoenix Plugs; User Manual
Product NameHDMI Video H.264 H.265 IPTV Encoder with Loopout
Product TypeVideo Encoder
Screen Mode SupportedFull HD
Video FormatsH.264
Video FormatsH.265
Video FormatsJPEG
Video FormatsMJPEG
Weight (Approximate)0.65 lb
Width4.9"
BrandSIIG
Weight (lbs)1.1500
UPC662774045030
MPNCE-H27511-S1
