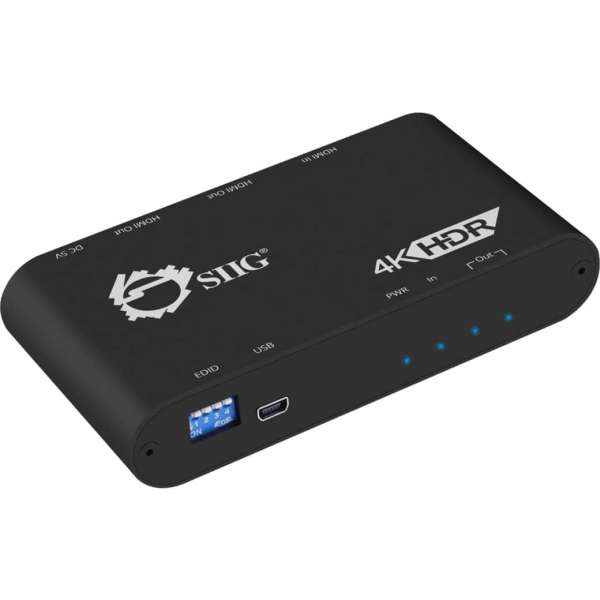

SIIG 1x2 HDMI 2.0 Splitter / Distribution Amplifier with Auto Video Scaling, 4K 60Hz HDR, 3840x2160 HDMI Splitter- HDR- HDCP 2.2- HDMI 4K Splitter with EDID- 2 Port 4K HDMI Splitter 1 in 2 out Auto Video Scaling, 7.1-ch Surround Sound Audio, 4K to 1080p d

SKU
INGM8JX676
by SIIG
$91.98 /EACH
Out of stock

Distributes HDMI video/audio signals from one HDMI source to two HDMI displays while maintaining signal quality; Distributes HDMI video and audio from a single source to 2 HDMI displays simultaneously while maintaining signal quality; Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth; Supports up to 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color; Supports Dolby Digital, DTS-HD and Dolby TrueHD audio; Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.; EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility; Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance; Easy to cascade multiple splitters for more displays. Supports up to 10 layers.


Brand NameSIIG
Country of OriginTaiwan
Environmental CertificationRoHS
Environmentally FriendlyYes
HDMI In (Interfaces/Ports)Yes
HDMI Out (Interfaces/Ports)Yes
Height0.9"
Input Voltage5 V DC
Length4.7"
Manufacturer Part NumberCE-H22X11-S1
ManufacturerSIIG, Inc
Maximum Frequency600 MHz
Maximum Operating Distance49.21 ft
Maximum Video Resolution (Video)3840 × 2160
Minimum Frequency25 MHz
Number of HDMI Inputs (Interfaces/Ports)1
Number of HDMI Inputs1
Number of HDMI Outputs (Interfaces/Ports)2
Number of HDMI Outputs2
Product MaterialAluminum
Product MaterialMetal
Product Name1x2 HDMI 2.0 HDR Distribution Amplifier with EDID Management - 4Kx2K 60Hz
Product TypeAudio/Video Distribution Amplifier
TAA CompliantYes
Weight (Approximate)13.44 oz
Width2.4"
Download PDF File
BrandSIIG
Weight (lbs)0.700000
UPC662774041094
MPNCE-H22X11-S1
