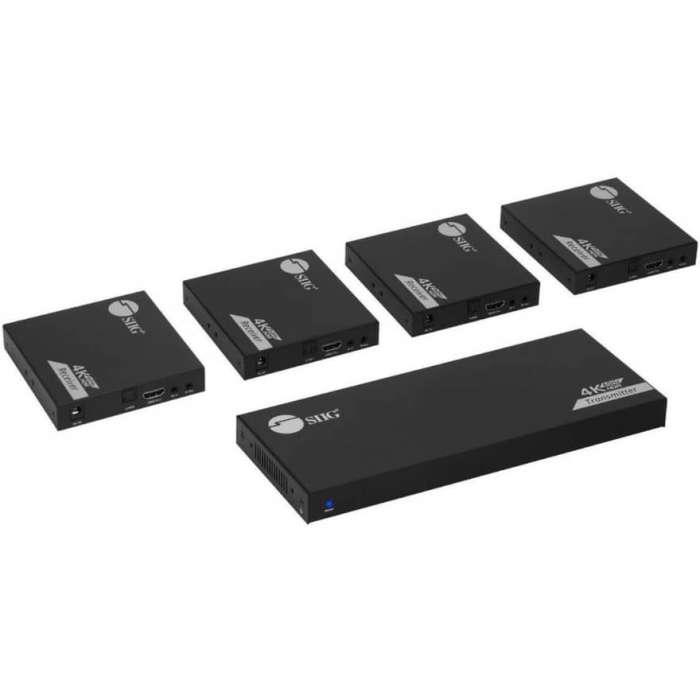

SIIG 1x4 HDMI Splitter Over Cat6 Extender with Loopout/IR/ARC & RS-232, HDMI 1 in 2 out & 4 Ext, 1x4 HDMI 4K60Hz Splitter, 4 port HDMI Splitter, HDMI over Cat6/7 Extender

SKU
INGM06YQ36
by SIIG
main product photo
$712.83 /EACH
Out of stock
Notify me when this product is in stock
  • 4K HDMI Extension - Easily extends UHD 4K@60Hz HDMI signals up to 230ft (70m) over economical Cat6/7 cabling to up to 4 displays.
  • Advanced Transmission Technology - Unique ultra-high-definition video digital transmission and connection extender technology, can extend and transmit 4K@60Hz YUV 4:4:4 video and audio, with zero latency, HDR.
  • HDMI Loopout + Extend 4 Displays - Supports one HDMI loop-out for additional local display connections and extender 4 receivers for HDTV or Projector via Cat6/7 cable.

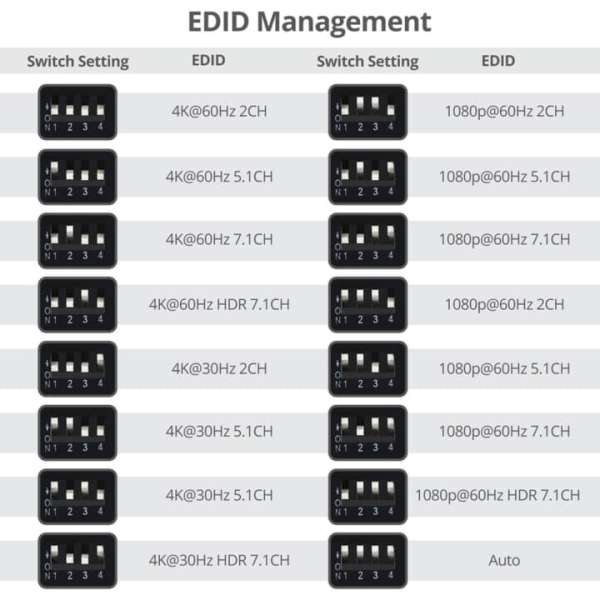

  • EDID Management - Support EDID management capability to controls the resolution output to the display(s).
  • Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the receiver's digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal.
  • IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa.
  • ARC and Audio Extraction - Through the Toslink connection of the Receiver (RX).
  • RS-232 Control - Support RS-232 command control in the Transmitter.
  • Protection - Lightning Protection, Surge Protection, ESD Protection.
  • High Quality Wall mount Design - High quality metal housing improve heat dissipation and ensure system stability during long hours of operation .
About Us:
Amazon_Reviews
150,000+
Reviews
Rated 4.7 on Amazon
★★★★★ 4.7
7 Private Brands
7 Private
Brands
Developed in-house
Fast Shipping
Fast Shipping
62 warehouses nationwide
20 Years Experience
20 Years
Experience
Trusted since 2005
Wholesale Discounts
Wholesale
Discounts
Special pricing
for bulk orders
Call 800-995-7539
Category: Computers & Hardware

Multiple Connectivity PortsComes with one HDMI video input port, one HDMI video loop-out port, four HDMI video output ports, eight RJ45 network ports, five 3.5mm IR emitter ports, five 3.5mm IR receiver ports, four S/PDIF ports, one RS-232 terminal block, one DIP switch, five reset buttons, four audio slide switches, one DC power jack (12V/2A) for TX, four DC power jacks (5V/2A) for RXs. Applications; Meeting room; Lecture hall; Educational facilities; Multimedia education; Home theater; Restaurant; Shopping center; Library; Show room


Brand NameSIIG
Connectivity TechnologyWired
Country of OriginChina
Environmental CertificationRoHS
Environmentally FriendlyYes
Frequency50 Hz
Frequency60 Hz
Graphics Modes (Video)4K
HDMI In (Interfaces/Ports)Yes
HDMI Out (Interfaces/Ports)Yes
Manufacturer Part NumberCE-H27A11-S1
ManufacturerSIIG, Inc
Maximum Operating Distance229.66 ft
Maximum Video Resolution (Video)3840 x 2160
Media Type SupportedTwisted Pair
Network (RJ-45) (Interfaces/Ports)Yes
Number of HDMI Inputs (Interfaces/Ports)1
Number of HDMI Inputs1
Number of HDMI Outputs (Interfaces/Ports)5
Number of Input Devices Supported1
Number of Network (RJ-45) Ports (Interfaces/Ports)8
Number of Network (RJ-45) Ports8
Number of Output Devices Supported4
Package Contents1 x Transmitter; 4 x Receiver; 5 x Power Adapter; 1 x IR Blaster extension cable; 4 x IR Receiver extension cable; Terminal block; Mounting kit; User Manual
Product ColorBlack
Product Name1x4 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232
Product TypeVideo Extender Transmitter/Receiver
Receiver Depth4.04"
Receiver Height0.79"
Receiver Weight (Approximate)8.64 oz
Receiver Width4.15"
Transmitter Depth4.09"
Transmitter Height0.91"
Transmitter Weight (Approximate)1.46 lb
Transmitter Width10.43"
Twisted Pair Cable StandardCategory 7
Download PDF File
BrandSIIG
Weight (lbs)6.200000
UPC662774045276
MPNCE-H27A11-S1
