(149118 ratings)

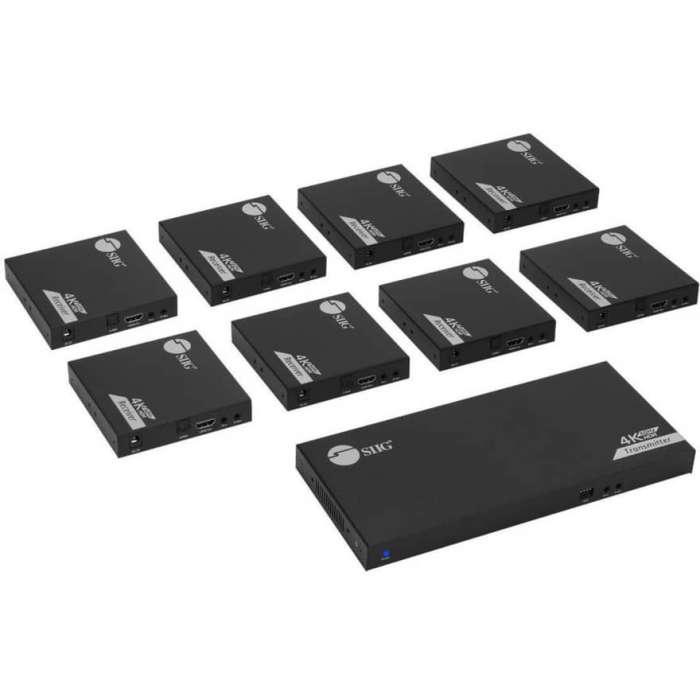

SIIG 1x8 HDMI Splitter Over Cat6 Extender with Loopout/IR/ARC & RS-232, HDMI 1 in 2 out & 8 Ext, 1x8 HDMI 4K60Hz Splitter, 8 port HDMI Splitter, HDMI over Cat6/7 Extender
SKU
INGM06YQ37
by SIIG
$1,489.63 /EACH
Delivered in 2-4 business days
Out of stock
- 4K HDMI Extension - Easily extends UHD 4K@60Hz HDMI signals up to 230ft (70m) over economical Cat6/7 cabling to up to 8 displays.
- Advanced Transmission Technology - Unique ultra-high-definition video digital transmission and connection extender technology, can extend and transmit 4K@60Hz YUV 4:4:4 video and audio, with zero latency, HDR.
- HDMI Loopout + Extend 8 Displays - Supports one HDMI loop-out for additional local display connections and extender 8 receivers for HDTV or Projector via Cat6/7 cable.
- EDID Management - Support EDID management capability to controls the resolution output to the display(s).
- Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the receiver's digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal.
- IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa.
- ARC and Audio Extraction - Through the Toslink connection of the Receiver (RX).
- RS-232 Control - Support RS-232 command control in the Transmitter.
- Protection - Lightning Protection, Surge Protection, ESD Protection.
- High Quality Wall mount Design - High quality metal housing improve heat dissipation and ensure system stability during long hours of operation .
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Computers & Hardware
Multiple Connectivity PortsComes with one HDMI video input port, one HDMI video loop-out port, eight HDMI video output ports, sixteen RJ45 network ports, nine 3.5mm IR emitter ports, nine 3.5mm IR receiver ports, eight S/PDIF ports, one RS-232 terminal block, one DIP switch, nine reset buttons, eight audio slide switches, one DC power jack (12V/2A) for TX, eight DC power jacks (5V/2A) for RXs. Applications; Meeting room; Lecture hall; Educational facilities; Multimedia education; Home theater; Restaurant; Shopping center; Library; Show room
| Brand Name | SIIG |
|---|---|
| Connectivity Technology | Wired |
| Country of Origin | China |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Graphics Modes (Video) | 4K |
| HDMI In (Interfaces/Ports) | Yes |
| HDMI Out (Interfaces/Ports) | Yes |
| Manufacturer Part Number | CE-H27B11-S1 |
| Manufacturer | SIIG, Inc |
| Maximum Operating Distance | 229.66 ft |
| Maximum Video Resolution (Video) | 3840 x 2160 |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) (Interfaces/Ports) | Yes |
| Number of HDMI Inputs (Interfaces/Ports) | 1 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs (Interfaces/Ports) | 9 |
| Number of Input Devices Supported | 1 |
| Number of Network (RJ-45) Ports (Interfaces/Ports) | 16 |
| Number of Network (RJ-45) Ports | 16 |
| Number of Output Devices Supported | 8 |
| Package Contents | 1 x Transmitter; 8 x Receiver; 9 x Power Adapter; 1 x IR Blaster extension cable; 8 x IR Receiver extension cable; Terminal block; Mounting kit; User Manual |
| Product Color | Black |
| Product Name | 1x8 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 |
| Product Type | Video Extender Transmitter/Receiver |
| Receiver Depth | 4.04" |
| Receiver Height | 0.79" |
| Receiver Weight (Approximate) | 8.64 oz |
| Receiver Width | 4.15" |
| Transmitter Depth | 4.72" |
| Transmitter Height | 0.91" |
| Transmitter Weight (Approximate) | 1.61 lb |
| Transmitter Width | 10.39" |
| Twisted Pair Cable Standard | Category 7 |
| Download PDF File |
| Brand | SIIG |
|---|---|
| Weight (lbs) | 11.2000 |
| UPC | 0662774045283 |
| MPN | CE-H27B11-S1 |
