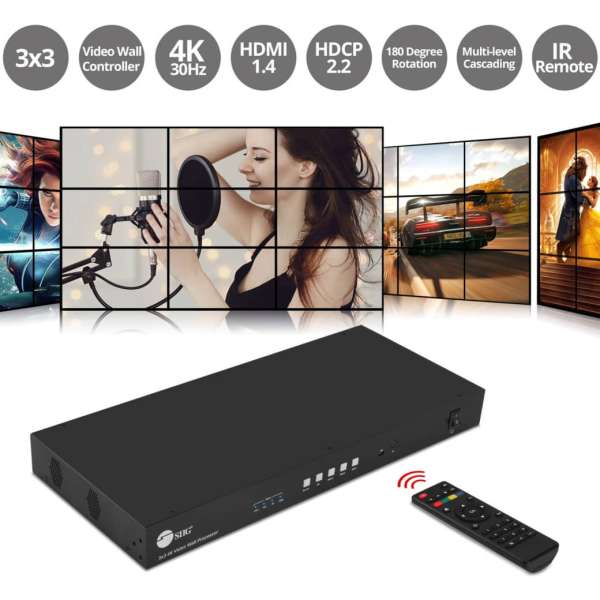

SIIG 3x3 4K Video Wall Processor with USB-C / DP / VGA / HDMI Input with EDID Management, Multi-level Cascading, Supports 180 HDMI image rotation Up to 4K30Hz / Multi Inputs (USB-C/DP/VGA/HDMI) & 9 HDMI output / HDMI loopout, 180 Rotate, Edge Correction

3x3 4K Video Wall Processor with USB-C / DP / VGA / HDMI Input; Allows you to select and switch between 4 source devices (1 HDMI, 1 DisplayPort, 1 USB-C, and 1 VGA) to display on 9 HDMI displays + 1 local HDMI out; Create a 3x3 Video Wall using any source device to 9 displays; Supports multi-level cascading to create 3x4, 4x5, 5x6, and 10x10 (max) video walls; Compliant with HDCP 2.2/1.4 specification; Supports 180 HDMI image rotation; Supports EDID management: Two default EDID: 4K30Hz & 1080p; Supports resolution up to 4K@30Hz for USB-C, DisplayPort and HDMI inputs, 1080p for the VGA input; OSD allows more than 10 splicing modes, video wall setup by single click; Supports monitor edge adjustment; Supports source device switching via front panel button, remote control, RS232 command, and TCP/IP control; USB port allows firmware upgrades when needed; Supports SPDIF and analog audio extraction to connect external speakers or AVRs; Mounting brackets included for various installation options
