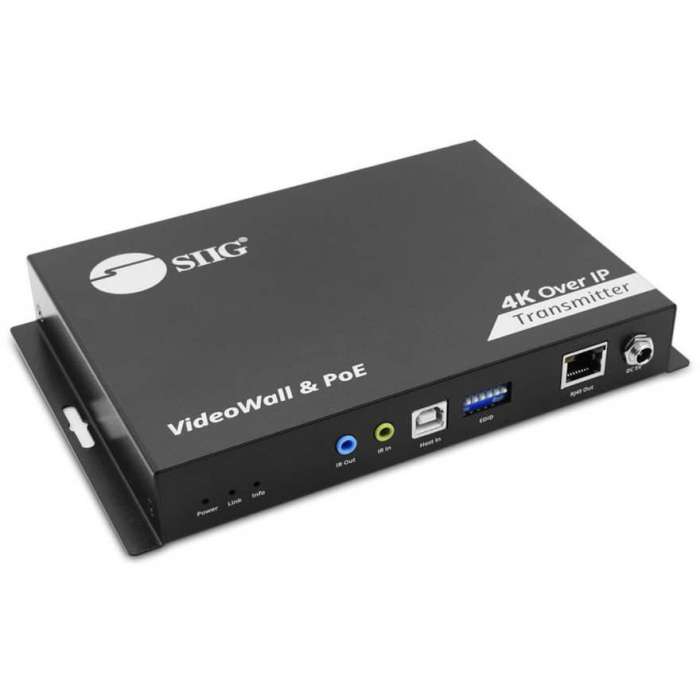

SIIG 4K 60Hz 18Gbps HDMI over IP Matrix - Encoder (TX) 394ft TAA Compliant - Transmits 4K@60Hz HDMI signal up to 394ft (120m) over a single Cat6/7 cable - DIP Switch - AV Over IP - PoE - One-to-One / One-to-Many / N to M Multi-casting - Up to 1023 t
Delivered in 2-4 business days
SIIG 4K 60Hz 18Gbps HDMI over IP Matrix - Encoder (TX) 394ft TAA Compliant - Transmits 4K@60Hz HDMI signal up to 394ft (120m) over a single Cat6/7 cable - DIP Switch - AV Over IP - PoE - One-to-One / One-to-Many / N to M Multi-casting - Up to 1023 transmitter units - 5x5 VideoWall - KVM - USB - HDCP 2.2 - HDR 10 - 3.5mm Stereo - S/PDIF - Bi-directional IR - RS-232 Control - ESD Protection - TAA Compliant - 3 years warranty - Kit (CE-H28A11-S1) - Decoder (RX) (CE-H27G11-S1) - Controller (CE-. OverviewHDMI over IP Matrix - TX, transmits 4K@60Hz HDMI signal up to 394Ft (120m) over a single Cat6/7 cable, PoE, One to One, One to Many, Multi-casting, Video Wall, KVM, 18Gbps, HDCP 2.2, HDR 10, 7.1ch, Bi-directional IR, RS-232 Control, TAA Compliant, Kit (CE-H28A11-S1), RX (CE-H27G11-S1) . Features. Flexible matrix function to extend HDMI HDMI audio/video signals to the remote displays/monitors over UTP Cat6/7 cable up to 394ft (120m) and send the 4K@60Hz Ultra HD HDR resolution to the receiver for stable transmission and cost saving. Allows multiple receivers to be used simultaneously in multiple configurations. Highly ScalableWorks as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays. Allows up to 65,536 total units, limited to 1,023 transmitter units, the additional transmitter unit (CE-H27F11-S1), receiver unit (part#- CE-H27G11-S1), and Kit (part#- CE-H28A11-S1) are sold separately. PoE TechnologyAllows the power supply connected to either the TX or RX unit by Ethernet port to power both units, making it easy to construct and improve system robustness. No additional power adapter required. Long DistanceThis 4K 60Hz HDMI over IP Matrix Kit is designed for reliably extend HDMI signals up to 394ft (120m) to remote HDMI displays through Gigabit Ethernet network and Gigabit Ethernet switch. 4K UHD ResolutionSupports Ultra High-Definition video resolution up to 4K (4096x2160) @60Hz HDCP 2.2, 4:4:4, HDR 10, Deep Color and 3D. Image rotation supports clockwise 90, 180, and 270 in video wall only. IR Extension/RS-232 ControlBi-directional IR pass back function and RS-232 control source devices from remote RX locations, allowing you to select and switch between HDMI source devices. High PerformanceOffers a true 18Gbps video bandwidth and supports 7.1-ch surround sound. Extract AudioAudio extraction via digital S/PDIF (Toslink), 3.5mm stereo audio, or HDMI output ports. Digital S/PDIF audio format: PCM 2.0, Dolby 5.1, and DTS 5.1; 3.5mm stereo audio format: PCM 2.0; HDMI audio format: PCM 2.0/5.1/7.1, Dolby 5.1/7.1, and DTS 5.1/7.1. Multiple Connectivity PortsComes with one HDMI video input port, one USB-B 2.0 port for Host- WebCam, one USB-B 2.0 port for Host-KM and flash drive, one Gigabit Ethernet network port, one 3.5mm IR emitter port, one 3.5mm IR receiver port, one 3.5mm microphone jack, one 3.5mm audio jack, one S/PDIF output port, one DIP switch for video channel selection, one RS-232 port for control, one DC power jack (5V/2A)
Application/Usage | Exhibition |
---|---|
Application/Usage | Digital Signage System |
Application/Usage | Control Center |
Application/Usage | Airport |
Application/Usage | Lecture Hall |
Application/Usage | Shopping Center |
Application/Usage | Retail Store |
Application/Usage | Restaurant |
Product Type | Video Extender Transmitter |
Connectivity Technology | Wired |
Form Factor | Wall Mountable |
Brand Name | SIIG |
Maximum Operating Distance | 393.70 ft |
Number of Network (RJ-45) Ports | 1 |
Number of USB Ports | 2 |
Number of HDMI Inputs | 1 |
Media Type Supported | Twisted Pair |
Number of Input Devices Supported | 1 |
TAA Compliant | Yes |
Power over Ethernet (PoE) | Yes |
UPC | 662774045566 |
---|---|
Weight (lbs) | 2.1000 |
MPN | CE-H27F11-S1 |
Brand | SIIG |
