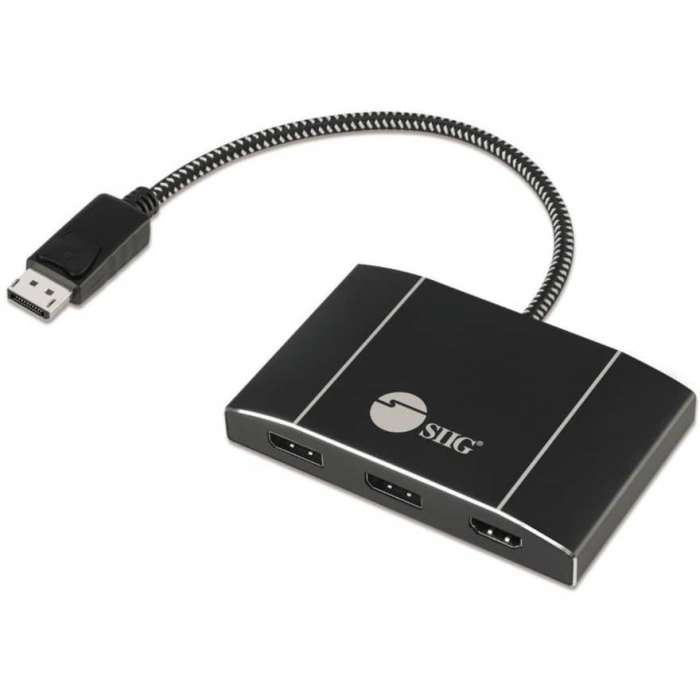

Siig Triple 4K DisplayPort 1.4 to 2 DP & HDMI MST Hub Splitter, Supports Mirror, Extended & Panoramic Mode

Easily connect up to 2 DisplayPort and 1 HDMI displays from a single DisplayPort 1.4 output; Boost your productivity by connecting two DisplayPort and one HDMI displays to single DisplayPort output with Multi-Stream Transport (MST) technology; Provides multiple display modes for various applications such as Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display; Note: Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter; Total Bandwidth 32.4Gbps (Max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, or three 4K (3840x2160)@30Hz or less display. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, three 2K, three 1080p, 4K+2K+1080p etc.; Note: The total combined bandwidth among all connected displays must NOT be exceeded the total bandwidth; Compatible with DisplayPort 1.4 with MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology; Supports 4K HDR and HDCP 2.2; Reset button allows re-detection of all the displays if any of the displays are not detected; Plug-n-play, trouble-free set up without complicated hardware or driver installation; Premium aluminum housing with embedded woven braided DisplayPort cable decreases surrounding interference and provides optimal video quality. Notes:1) Mirror mode using Windows Display Utility and NVIDIA Utility is limited to 2 displays2) Video Wall mode (e.g., Panoramic) requires either an AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter3) Currently, most Intel HD Graphics cards only support up to 3 external monitors altogether4) macOS currently does not support MST function and will only mirror the displays5) Requires USB power source of at least 5V/600mA
