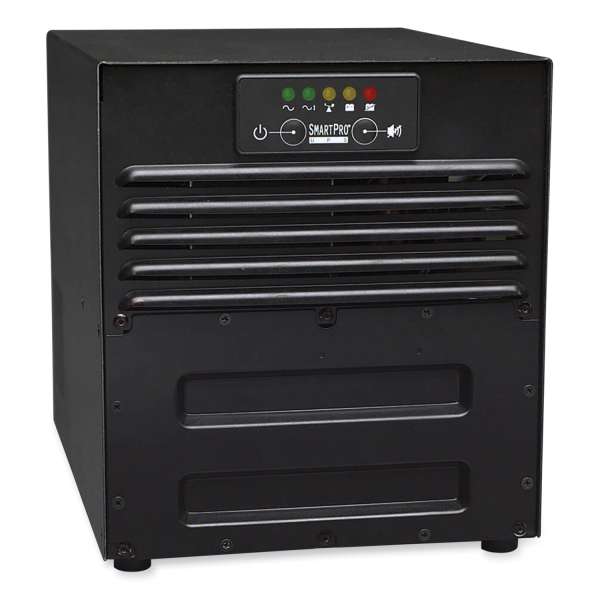

SmartPro Line-Interactive Sine Wave UPS Tower, 6 Outlets, 700 VA, 570 J

SKU
TRPSMART700DV
$871.80 /EACH

Delivered in 2-4 business days

Out of stock
  • Maintains nominal output with either 120V or 230V input power.
  • Protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges.
  • Includes detachable input cord with NEMA 5-15P input plug.
  • Built-in C14 inlet supports a variety of user-supplied international high- and low-voltage input cables.
  • Supports remote monitoring of UPS and site power conditions via built-in USB and RS-232 enabled DB9 ports.
  • Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level.

Tripp Lite's dual-voltage line-interactive UPS system maintains 120V nominal output when fed with North American 120V or international 230V input voltage. Protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 54.5 min. half-load runtime and 22.2 min. full load runtime during power failures. 700VA/450W power handling capability supports a variety of networking, telecom and other applications, including multiple network workstations. Includes 6 UPS-supported outlets. Supports remote monitoring of UPS and site power conditions via built-in USB and RS-232 enabled DB9 ports. Works with PowerAlert UPS monitoring and unattended shutdown software available via free download. Includes complete USB and serial cabling. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level. Protection Type: Power; System VA: 700 VA; Backup Time at Half Load: 55 min @ 225 W; Automatic Voltage Regulation (AVR): Yes.


Automatic Voltage Regulation (AVR)Yes
Backup Systems Alarm(s)Audible
Backup Time at Full Load22 min @ 450 W
Backup Time at Half Load55 min @ 225 W
Battery Recharge Time4 h
Color(s)Black
Compliance StandardsCE Certified; CSA Certified; FCC Class A Certified; RoHS Compliant; TAA Compliant; UL Listed
Connected Equipment Guarantee/Warranty$250,000 Ultimate Lifetime Insurance
Connector/Port/InterfaceUSB
Cord Length6 ft
Depth12.5"
Diagnostics/Alarm/Status LightAlarm; LED
Emergency Power Off (EPO)Yes
Global Product TypeBackup Systems
Height10.2"
Housing MaterialSteel
Input Frequency50-60 Hz
Joules Of Surge Protection570 J
Model Name/NumberSmartPro® SMART700DV
Noise ProtectionEMI/RFI Noise Suppression
Number of Outlets6
Number of Outlets/Type6 UPS/Surge
Post-Consumer Recycled Content Percent0%
Pre-Consumer Recycled Content Percent0%
Product Biodegradability in Days0
Protection TypePower
React TimeInstantaneous
System VA700 VA
Total Recycled Content Percent0%
Weight65 lbs
Width9"
Download PDF File
BrandTripp Lite
Weight (lbs)67.0000
UPC037332126597
MPNSMART700DV
