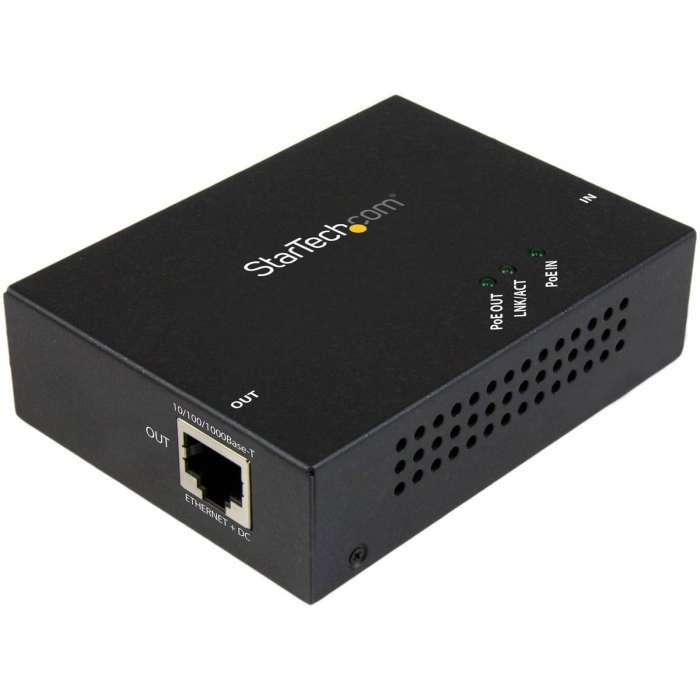

StarTech.com 1 Port Gigabit PoE+ Extender
Delivered in 2-4 business days
- Deploy and access your Gigabit PoE-powered devices (PD) further away
- Extend your PoE PDs over longer distances by daisy-chaining four extenders up to 500m (1640ft) total range (reduced power output at each connection)
- Compact, wall-mountable, and rugged metal housing for convenience and reliability
- 2kV ESD and surge protection
- Plug-and-play setup with no power adapter required
- IEEE 802.3at 30W input to IEEE 802.3at/af 24W output
- 52V to 56V output voltage
- Automatically detects your connected PD to prevent damage if incorrectly installed
This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure. Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it's easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability. Unrestricted PoE+ range and convenience Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices. Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you're all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ switch (IES81000POE). Daisy chain for longer distance and flexibility Still need more distance? If an extra 100m isn't enough, this full-featured PoE extender offers daisy chain capability. You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It's perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used). Convenient installation options and durable construction Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter. You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection. The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications Ideal for Wi-Fi® access points, IP phones, surveillance cameras, and kiosks where a power connection is not available Enable remote installation of PoE+ devices over longer distance than conventional PoE range capabilities Perfect for SOHO, SMB, system integrators, and IT administrators
| Brand Name | StarTech.com |
|---|---|
| Certifications & Standards |
|
| Compatibility | Compatible Products:
|
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form Factor | Wall Mountable |
| Height | 1" |
| Input Ports | 1 x Gigabit Ethernet |
| Length | 3.7" |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | POEEXT1GAT |
| Maximum Output Power | 24 W |
| Maximum Output Voltage | 56 V DC |
| Minimum Output Voltage | 52 V DC |
| Output Ports | 1 x Gigabit PoE+ |
| Package Contents |
|
| Packaged Quantity | 1 |
| Product Name | 1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft) |
| Product Type | PoE Extender |
| Protection Type | ESD Protection |
| Protection Type | Surge Protection |
| TAA Compliant | Yes |
| Weight (Approximate) | 6.81 oz |
| Width | 2.7" |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 0.7000 |
| UPC | 065030860895 |
| MPN | POEEXT1GAT |
