StarTech.com 1 Port Low Profile PCI Express Serial Card

SKU
STCPEX1S553LP
$63.18 /EACH

Delivered in 2-4 business days

Out of stock
  • One high speed RS232 serial port with data transfer rate up to 460.8 Kbps
  • Ships with half-height/low profile mounting bracket, includes standard bracket
  • Selectable power output on pin 9 for the serial port
  • Native single-chip, single lane PCI Express
  • Single chip design optimizes speed and reliability
  • Compliant with PCI Express base specifications revision 1.1a
  • Automated out-of-band flow control using CTS/RTS and DSR/DTR
  • Automated in-band software flow control using programmable Xon/Xoff in both directions
  • 256 Byte FIFO

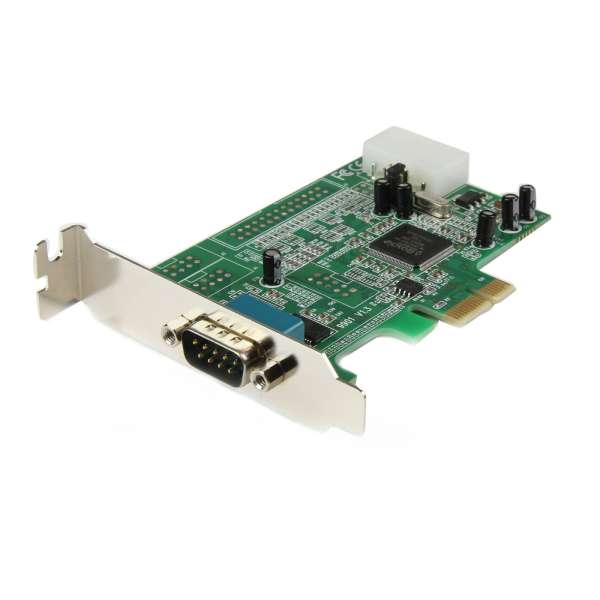

The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection. The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards. The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor). This product is a replacement for our PEX1S552LP card. Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Product TypeSerial Adapter
Host InterfacePCI Express x1
Data Transfer Rate460kB/s
UART Type16550
Platform Supported
  • PC
  • Mac
  • Linux
Number of Serial Ports (External)1
Form FactorPlug-in Card
Card HeightLow-profile
Height0.8"
Width3.1"
Length4.1"
Weight (Approximate)1.60 oz
Package Contents
  • 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
  • Full Profile Bracket
  • Driver CD
  • Instruction Manual
Additional Information
  • Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance.
  • Pre-configured for low profile/half-height systems but includes a full profile bracket for versatility.
  • Easy to install and use with full step-by-step instructions saving time and hassle.
  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS
  • Windows Server® 2012, 2008 R2, 2003
  • Mac OS® 10.4 and later (tested up to 10.10)
  • Linux kernel 2.6.x
  • Environmentally FriendlyYes
    Environmental Certification
    • RoHS
    • REACH
    • WEEE
    Country of OriginTaiwan
    TAA CompliantYes
    Limited Warranty2 Year
    Download PDF File
    BrandStarTech.com
    Weight (lbs)0.3000
    UPC065030841733
    MPNPEX1S553LP
