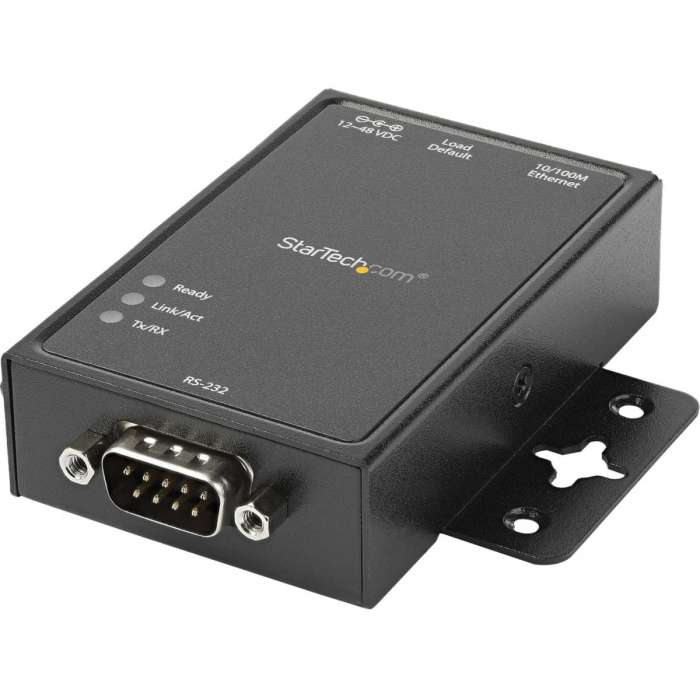

StarTech.com 1 Port RS232 Serial to IP Ethernet Converter / Device Server

SKU
STCNETRS2321P
$159.41 /EACH

Delivered in 2-4 business days

Out of stock
  • Rugged aluminum housing delivers reliable performance
  • Fast, 230.4 kbps baud rate
  • Mounts to a surface or on a DIN rail, with a built-in mounting bracket and included DIN rail clips
  • Compatible with the free, StarTech.com Serial Device Application Software for iOS, Android, and Chrome Browser (NETRSAPP)
  • Supports Telnet, for OS independent communication, perfect for Windows, Mac, and Linux users
  • Configurable using the software utility (Windows only), or web browser
  • Supports DHCP, HTTP, ICMP, ARP, IP, UDP, TCP
  • Compliant with IEEE 802.3 and IEEE 802.3u standards

This 1-port serial device server is an effective serial-over-IP solution that lets you connect to, configure, and remotely manage an RS232 serial device over a LAN (Local Area Network). For more control options, the device server is compatible with the free, StarTech.com Serial Device Application Software (NETRSAPP). When coupled with the NETRS2321P, this handy application for iOS, Android, and Chrome Browser lets you build a custom serial control interface that's tailored to your specific application. Access your serial devices remotely The versatile device server is designed to function seamlessly with your integrated serial ports, while offering baud rates faster than many other device servers (up to 230.4Kbps).The device server provides the tools you need to communicate with remote RS-232 devices as if they were directly connected. Flexible setup and operation It offers versatile browser-based or Virtual COM port software configuration for customizing the device to suit your application. Plus, the software communicates directly with the device server, so it can be used in Virtual Machine (VM) environments if you have multiple VMs sharing the same set of hardware. The device server also offers remote Telnet configuration and support for IP, HTTP, ICMP, DHCP, ARP, TCP and UDP protocols. Aluminum housing provides durability you can count on With a sturdy aluminum housing and DIN rail or surface mounting brackets, the serial device server provides a durable remote serial interface for industrial automation, security, Point of Sale and many other applications. Download the application software and manage your serial devices with ease Download the StarTech.com serial control software from the Apple App Store, the Google Play™ Store, or the Chrome Web Store. The NETRS2321P is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Brand NameStarTech.com
Centronics PortNo
Compatibility
  • Windows® 2000, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
  • Linux: The included software does not support Linux to emulate a local COM port Linux users would need to use Telnet
Country of OriginTaiwan
Depth3.4"
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Ethernet TechnologyFast Ethernet
Form FactorRail-mountable
Form FactorWall Mountable
Height0.9"
ISM BandNo
Limited Warranty2 Year
Manufacturer Part NumberNETRS2321P
ManufacturerStarTech.com
Media Type SupportedTwisted Pair
Network (RJ-11)No
Network (RJ-45)Yes
Network Standard10/100Base-TX
Number of Network (RJ-45) Ports1
Number of Serial Ports1
Package Contents
  • 1 Port RS232 Serial to IP Ethernet Converter / Device Server - Aluminum
  • 1 x DIN Rail Kit
  • 1 x Universal Power Adapter (NA/JP, EU, UK, ANZ)
  • 1 x Software CD
  • 1 x Instruction Manual
Packaged Quantity1
Parallel PortNo
Phone Line (RJ-11)No
PoE (RJ-45) PortNo
Product ColorBlack
Product Name1 Port RS232 Serial to IP Ethernet Converter / Device Server - Aluminum
Product TypeDevice Server
Serial PortYes
TAA CompliantYes
UNII BandNo
USBNo
Weight (Approximate)3.20 oz
Width2.1"
Wireless LANNo
UNSPSC43222625
Download PDF File
BrandStarTech.com
Weight (lbs)0.9000
UPC065030851459
MPNNETRS2321P
