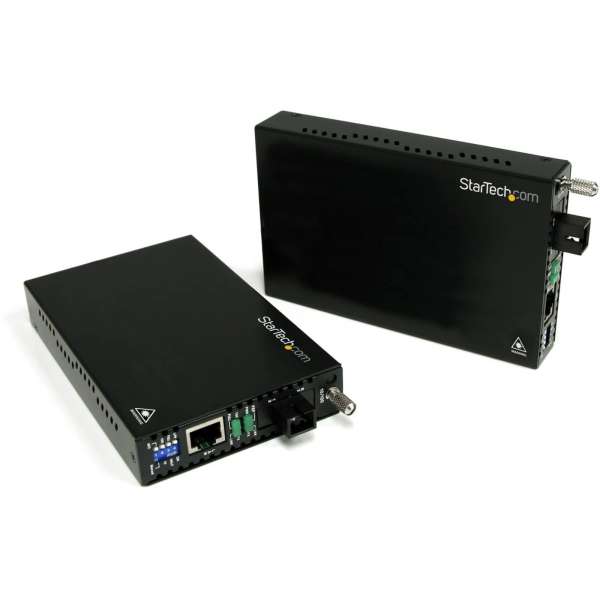

StarTech.com 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km

SKU
STCET90110WDM2
$142.91 /EACH
In stock
Only 10 left

The ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km (12.4 mi). The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling. The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required. For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis (ETCHS2U). Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Brand NameStarTech.com
Country of OriginTaiwan
Depth6.3"
DVINo
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Ethernet TechnologyFast Ethernet
Fiber Mode SupportedSingle-mode
Fiber Optic Wavelength1310 nm
Fiber Optic Wavelength1550 nm
Form FactorDesktop
Form FactorRack-mountable
Height1"
Limited Warranty2 Year
Management PortNo
Manufacturer Part NumberET90110WDM2
ManufacturerStarTech.com
Maximum Distance Supported12.43 Mile
Media Type SupportedOptical Fiber
Media Type SupportedTwisted Pair
Network (RJ-45)Yes
Network Technology10/100Base-TX
Network Technology100Base-FX
Number of Network (RJ-45) Ports1
Number of SC Ports1
Package Contents
  • 1 x Local Media Converter Unit
  • 1 x Remote Media Converter Unit
  • 2 x Universal Power Adapters (NA/EU/UK/AU)
  • 1 x Grounding Screw
  • 1 x Instruction Manual
Plug/Connector TypeType M
Power Consumption19.20 W
Power SourceAC Adapter
Product Name10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km
Product TypeTransceiver/Media Converter
SC Port TypeDuplex
TAA CompliantYes
Total Number of Ports2
USBNo
Weight (Approximate)2.70 lb
Width3.5"
UNSPSC43201553
BrandStarTech.com
Weight (lbs)3.700000
UPC065030846271
MPNET90110WDM2
