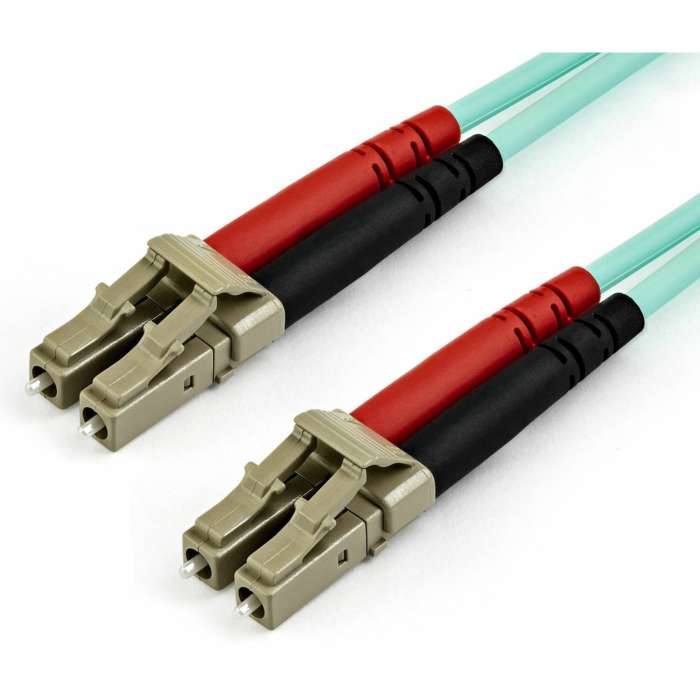

StarTech.com 10m OM4 LC to LC Multimode Duplex Fiber Optic Patch Cable- Aqua
Delivered in 2-4 business days
- OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards
- COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10
- SPECS: 10m (33ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ?2000MHzkm at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
This LC to LC Multimode Duplex Fiber Optic Patch cable offers reliable connections for 40GBase-SR4, 100GBase-SR10, SFP+ and QSFP+ transceivers in your 40 and 100 Gigabit networks. Built for Performance With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications. Maximum Compatibility This fiber-optic patch cord is backward compatible with your existing 50/125 equipment, ensuring a reliable connection with legacy LANs. High Quality Construction Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration. Each OM4 fiber cable is also individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability. 450FBLCLC10 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
| Brand Name | StarTech.com |
|---|---|
| Cable Characteristic | Patch Cable |
| Cable Length | 32.81 ft |
| Cable Type | Fiber Optic |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector on Second End Details | 2 x LC Network - Male |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Core/Cladding Diameter | 50/125 µm |
| Country of Origin | China |
| Data Transfer Rate | 100 Gbit/s |
| Device Supported | Network Device |
| Device Supported | Transceiver |
| Features | Corrosion Resistant |
| Features | Flame Retardant |
| Features | Halogen Free |
| Fiber Optic Mode | Multi-mode |
| Jacket Type | LSZH |
| Limited Warranty | Lifetime |
| Manufacturer Part Number | 450FBLCLC10 |
| Manufacturer | StarTech.com |
| Product Color | Aqua |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Product Type | Network Cable |
| UNSPSC | 26121607 |
| Download PDF File |
| UPC | 065030881838 |
|---|---|
| Weight (lbs) | 0.3000 |
| MPN | 450FBLCLC10 |
| Brand | StarTech.com |
