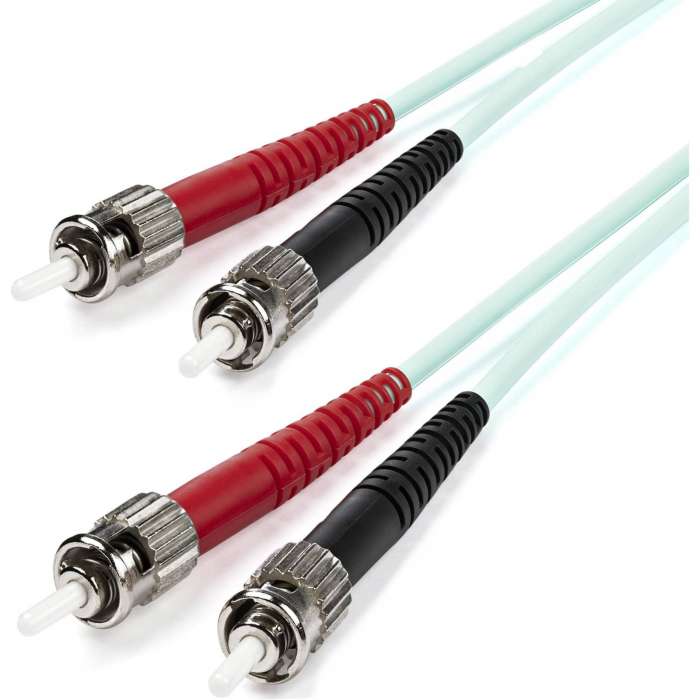

StarTech.com 1m (3ft) ST/UPC to ST/UPC OM3 Multimode Fiber Optic Cable, Full Duplex Zipcord Fiber, 100Gbps, LOMMF, LSZH Fiber Patch Cord

SKU
STCA50FBSTST1
$16.17 /EACH

Delivered in 2-4 business days

Out of stock
  • OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
  • QUALITY CONSTRUCTION: 50/125m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; ST/ST connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
  • RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
  • COMPATIBILITY: OM3 ST/ST multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2
  • SPECS: 1m (3.3ft); Color: Aqua (OM3); ST/ST UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ?2000MHzkm at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life

Perfect for fiber cable runs between multiple backbone switches, hubs and routers as well as higher-end networking equipment, this high-speed 10-Gigabit Multimode Duplex Fiber Cable is terminated with ST connectors and is composed of 50/125 micron OM3 aqua fiber to deliver reliable data transfers at blinding speeds. Suited for a broad range of environments, fiber optic cable is housed in a flame-retardant, LSZH (Low-Smoke, Zero-Halogen) cable jacket, ensuring minimal smoke, toxicity and corrosion in the event of a fire - making it an excellent choice for a wide range of environments, including industrial settings, central offices and schools as well as residential settings where building codes are a consideration.


Brand NameStarTech.com
Cable CharacteristicPatch Cable
Cable Length3.28 ft
Cable TypeFiber Optic
Connector on First End Details2 x ST Network - Male
Connector on First End DetailsNetwork - Male
Connector on Second End Details2 x ST Network - Male
Connector Type on First EndST Network - Male
Connector Type on Second EndST Network - Male
Core/Cladding Diameter50/125 µm
Country of OriginChina
Data Transfer Rate10 Gbit/s
Device SupportedHub
Device SupportedNetwork Device
Device SupportedRouter
Device SupportedSwitch
FeaturesCorrosion Resistant
FeaturesFlame Retardant
FeaturesHalogen Free
Fiber Optic ModeMulti-mode
Jacket TypeLSZH
Limited WarrantyLifetime
Manufacturer Part NumberA50FBSTST1
ManufacturerStarTech.com
Product ColorAqua
Product Name10Gb Aqua Fiber Patch Cable-ST Multi-Mode (M)-ST Multi-Mode (M)-1 m-Fiber Optic
Product TypeNetwork Cable
UNSPSC26121607
Download PDF File
BrandStarTech.com
Weight (lbs)0.1000
UPC065030827102
MPNA50FBSTST1
