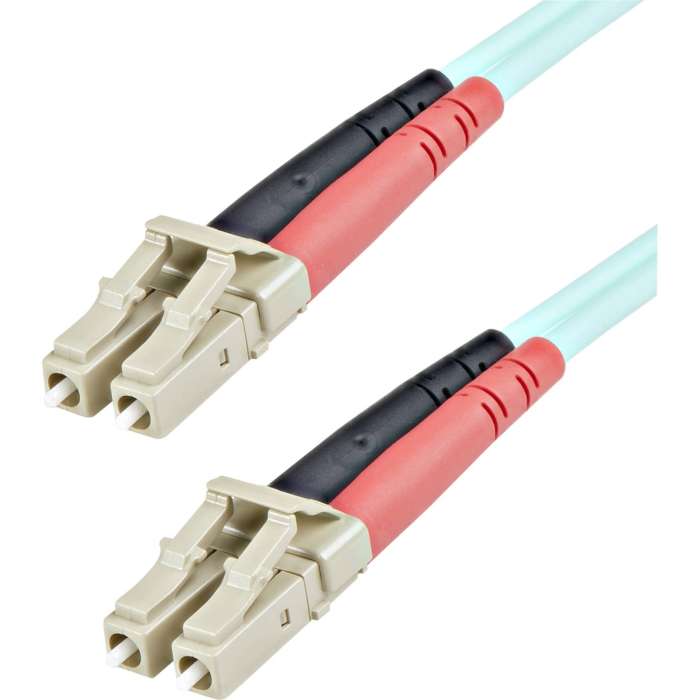

StarTech.com 1m Fiber Optic Cable
Delivered in 2-4 business days
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2
- SPECS: 1m (3.3ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ?2000MHzkm at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
OM3 LC to LC Multimode Duplex Fiber Optic Patch Cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10-Gigabit Ethernet connection. With laser-optimized multimode fiber (LOMMF), it is ideal for connecting 850nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. High-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications. Maximum data-transfer rate is 100Gbps. Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat or in the event of a fire. Use in a wide range of environments, including industrial settings, central offices and schools as well as residential settings. OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.
Brand Name | StarTech.com |
---|---|
Cable Characteristic | Patch Cable |
Cable Length | 3.28 ft |
Cable Type | Fiber Optic |
Connector Gender on First End | Male |
Connector Gender on Second End | Male |
Connector on First End Details | 2 x LC Network - Male |
Connector on Second End Details | 2 x LC Network - Male |
Connector Type on First End | LC Network - Male |
Connector Type on Second End | LC Network - Male |
Core/Cladding Diameter | 50/125 µm |
Country of Origin | China |
Data Transfer Rate | 10 Gbit/s |
Device Supported | Hub |
Device Supported | Network Device |
Device Supported | Router |
Device Supported | Switch |
Environmental Certification | RoHS |
Features | Corrosion Resistant |
Features | Flame Retardant |
Features | Halogen Free |
Features | Molded |
Fiber Optic Mode | Multi-mode |
Jacket Type | LSZH |
Limited Warranty | Lifetime |
Manufacturer Part Number | A50FBLCLC1 |
Manufacturer | StarTech.com |
Packaged Quantity | 1 |
Product Color | Aqua |
Product Name | Fiber Optic Duplex Patch Network Cable |
Product Type | Network Cable |
Weight (Approximate) | 0.03 lb |
UNSPSC | 26121607 |
UPC | 065030827065 |
---|---|
Weight (lbs) | 0.0500 |
MPN | A50FBLCLC1 |
Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
Brand | StarTech.com |
