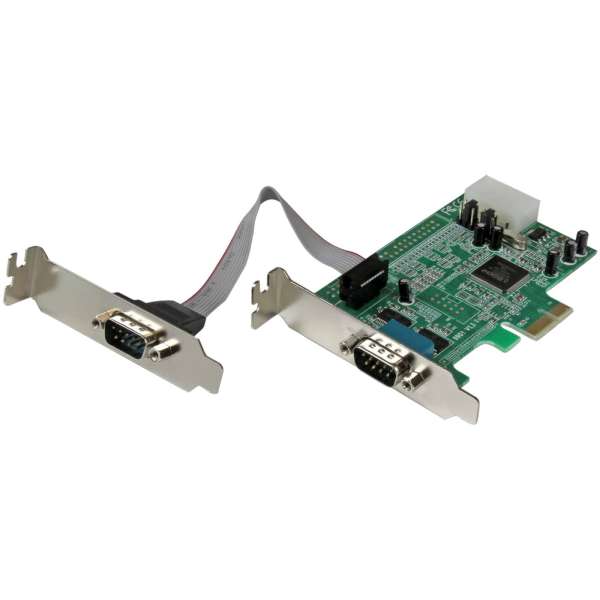

StarTech.com 2 Port Low Profile PCI Express Serial Card

SKU
STCPEX2S553LP
$61.77 /EACH

Delivered in 2-4 business days

Out of stock
  • One high speed RS232 serial port with data transfer rate up to 460.8 Kbps
  • Ships with half-height/low profile mounting bracket, includes optional standard profile bracket
  • Single chip design optimizes speed and reliability
  • Native single-chip, single lane PCI Express
  • Selectable power output on pin 9 for the serial port
  • Compliant with PCI Express base specifications revision 1.1a
  • Automated out-of-band flow control using CTS/RTS and DSR/DTR
  • Automated in-band software flow control using programmable Xon/Xoff in both directions
  • 128-byte deep FIFO per transmitter and receiver

The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections. The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards. The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows®, and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor). This product is a replacement for our PEX2S552LP card. Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Packaged Quantity1
Host InterfacePCI Express x1
Data Transfer Rate460kB/s
UART Type16550
Platform Supported
  • PC
  • Mac
  • Linux
Number of Serial Ports (External)2
Form FactorPlug-in Card
Card HeightDual-profile
Height0.8"
Width3.1"
Length4.1"
Weight (Approximate)2.20 oz
Package Contents
  • 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
  • DB9 Ribbon Cable
  • Full Profile Bracket
  • Low profile Bracket
  • Driver CD
  • Instruction Manual
Additional Information
  • Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance.
  • Pre-configured with half-height mounting bracket for low profile systems, but includes a full profile bracket for versatility.
  • Easy to install and use with full step-by-step instructions saves time and hassle.
Environmentally FriendlyYes
Environmental Certification
  • RoHS
  • REACH
  • WEEE
Country of OriginTaiwan
TAA CompliantYes
Limited Warranty2 Year
Download PDF File
BrandStarTech.com
Weight (lbs)0.3500
UPC065030841757
MPNPEX2S553LP
